Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

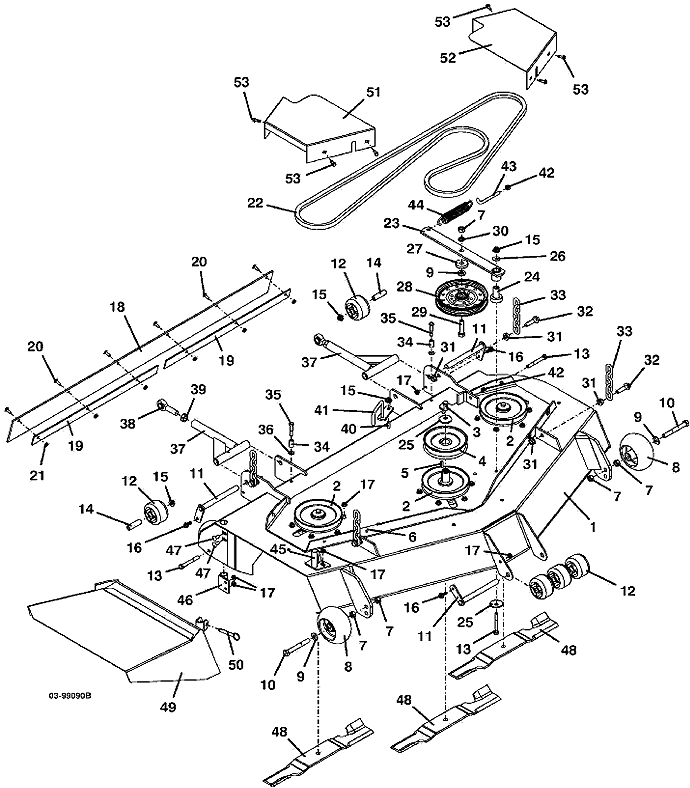

220 / 225 • Deck Assembly - M152

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Housing - M152

606302

2

Sheave

415892

3

Hex Bolt .375-24 x 1

243331

4

Sheave

415897

5

Square Key .250 x .875

281582

6

Speed Nut .250-20

254431

7

Nut .500-13

254470

8

Anti-Scalp Wheel 5 x 2.75

484225

9

Washer

257062

10

Hex Bolt .500-13 x 4

243620

11

Roller Lock Pin

644512

12

Roller 3 x 2"

426122

13

Hex Bolt .375-16 x 3

243365

14

Roller Mount Spacer

902284

15

Whiz Nut .375-16

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 52" Deck Flap

424205

19

M1 52-9861 RT Deflector Strap

774280

20

Truss Whiz Bolt .250-20 x .750

253177

21

Whiz Nut .250-20

253025

22

Belt

382082

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer .531 x 1.625

883804

28

Idler

393250

29

Hex Bolt .500-13 x 2

243580

30

Lock Washer

257432

31

Whiz Nut .437-14

253058

32

Hex Bolt .437-14 x 1.75 GR 8

243458

33

Chain - 5 Links M1

820331

34

Latch Spring Spacer

902263

35

Hex Bolt .312-18 x 1.750

243220

36

Washer

257020

37

Radius Arm Assembly - 255-61

604675

38

Rod End

265665

39

Nut .625-18

254493

40

Flange Whiz Bolt .375-16 x 1

253203

41

M1 Deck Belt Guide

644086

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Shaft - Clevis

643235

46

Pivot Mount

643632

47

Carriage Bolt .312 x .75

247130

48

Medium Lift Blade - 18"

320236

-

Contour Blade - 18"

320238

-

High Lift Notch Blade - 18"

320239

49

Discharge Shield Assembly

604749

50

Hitch Pin .375 x 2

260400

51

right Belt Shield 52/220

722333

52

left Belt Shield 52/220

722334

53

Hex Whiz Bolt .25-20 x .75

253175

Return to 220/225 Index Return to Top
