Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

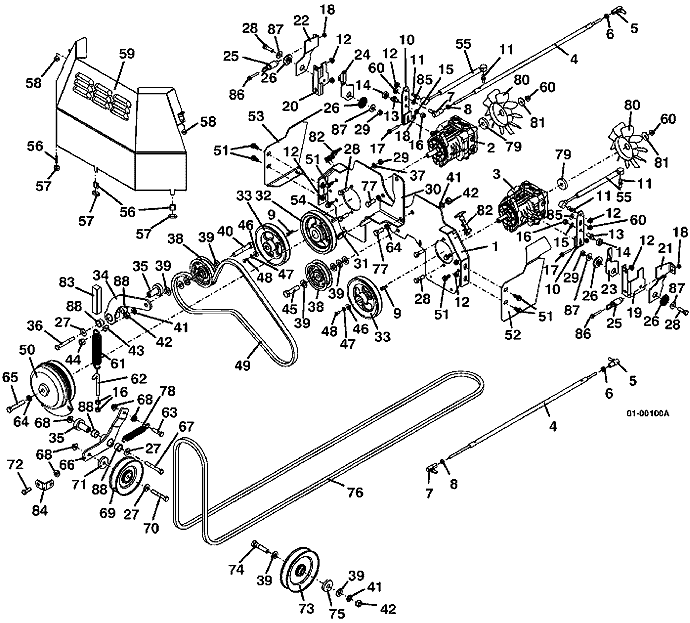

225 • Drive Assembly - late
serial numbers 5113811 - 5199999

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate - 200

644634

2

Hydro Pump with Shaft - left

391460

3

Hydro Pump with Shaft - right

391461

4

Steering Linkage - M1 200

604525

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Square Key .187 x 1

281560

10

Pump Control Arm - 10A

754094

11

Ball Stud

265680

12

Whiz Nut

253035

13

Neutral Adjust Roller Mount

887110

14

Double Seal Ball Bearing .315 x .866

120025

15

Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

Neutral Return Mount - right

754072

20

Neutral Return Mount - left

754073

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257040

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Anti Rotation Bracket M1

755125

31

Clutch Bracket Cover

422088

32

Sheave

415888

33

Sheave

415882

34

Idler Arm - M1 Pumps F/A

824485

35

Pedestal Bearing .750 x 1.5

121650

36

Hex Bolt .375-16 x 3

243365

37

Lock Washer

257412

38

Idler Pulley

393195

39

Washer

257062

40

Full Thread Hex Bolt .500-13 x 3 GR 5

243601

41

Lock Washer

257432

42

Nut .500-13

254470

43

Nylon Bearing

422558

44

Lock Nut .500-13

253930

45

Hex Bolt .500-13 x 2

243580

46

Flat Washer

257019

47

Lock Washer

257392

48

Hex HD

270820

49

Belt

382034

50

Electric Clutch

388740

51

Hex Flange Whiz Bolt .312-18 x .75

253192

52

right Pump Plate Shield 225

754103

53

left Pump Plate Shield 225

754104

54

Square Key (Round End) 5mm x 28mm

281670

55

Damper

285031

56

Rear Belt Shield Isolater

422090

57

Rear Belt Shield Isolater

422090

58

Rubber Bumper

424015

59

Rear Shield Assembly - M1 225

604755

60

Whiz Nut .312-24

253038

61

Extension Spring

283848

62

Idler Adjustment J Bolt

730391

63

Hex Bolt .375-16 x 1

243330

64

Lock Washer

257422

65

Hex Bolt .437-20 x 2.5

243470

66

Mule Drive Idler Arm

824486

67

Hex Bolt .375-16 x 2.750

243360

68

Whiz Nut .375-16

253043

69

Idler

393376

70

Hex Bolt .375-16 x 2.500

243355

71

Retainer Washer

883803

72

Hex Bolt .375-16 x 1

243330

73

Idler Pulley

393390

74

Hex Bolt .500-13 x 2.250

243585

75

Retainer Washer .531 x 1.625

883804

76

Belt

382085

-

Belt

382095

77

Hex Bolt .437-14 x 1

243445

78

Extension Spring with Swivel

283820

79

Fan Mount Hub 10A

885123

80

7" Nylon Fan

320857

81

Retainer Washer

774015

82

Rubber Draw Latch

281301

83

Idler Spring Damper

425650

84

Idler Spring Bracket M1

732520

85

Washer

257020

86

Hex Bolt .250-20 x 1.500

243035

87

Washer

257030

88

Oilite Bearing .754 x .878 x .50

121756
