Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

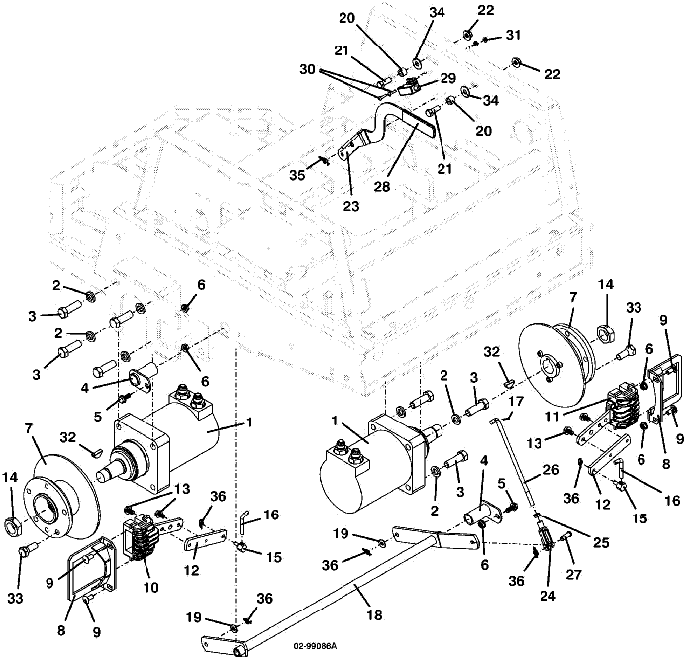

220 / 225 • Wheel Motor & Brake Assembly

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603595

2

Lock Washer

257442

3

Hex Bolt .562-18 x 1.75 GR 5

243770

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

8

Caliper Mount

644121

9

Carriage Bolt .312 x .75

247130

10

Counterclockwise Caliper Brake Assembly

481101

-

Brake Pad Kit

603150

11

Clockwise Caliper Brake Assembly

481100

-

Brake Pad Kit

603150

12

Brake Linkage for 7.75 Rotor

782874

13

Whiz Bolt .312-18 x .500

253189

14

1-20 Nut

254522

15

Brake Linkage Pin

880924

16

928 Brake Linkage Rod

730155

17

Cotter Pin

260624

18

Brake Tube

644172

19

Brake Interlock Switch

183894

20

Spacer

902280

21

Hex Bolt .375-16 x 1

243330

22

Whiz Nut .375-16

253043

23

Brake Lever - M1

754055

24

Clevis Yoke

265537

25

Nut .312-24

254441

26

Brake Rod - M1

730358

27

Clevis Pin .312 x 1

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut 10-24

253020

32

Woodruff Key .312 x 1

281860

33

Lug Bolt .500 x .875

248565

34

Washer

257040

35

Cotter Ring

260608

36

Cotter Ring

260606
