Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

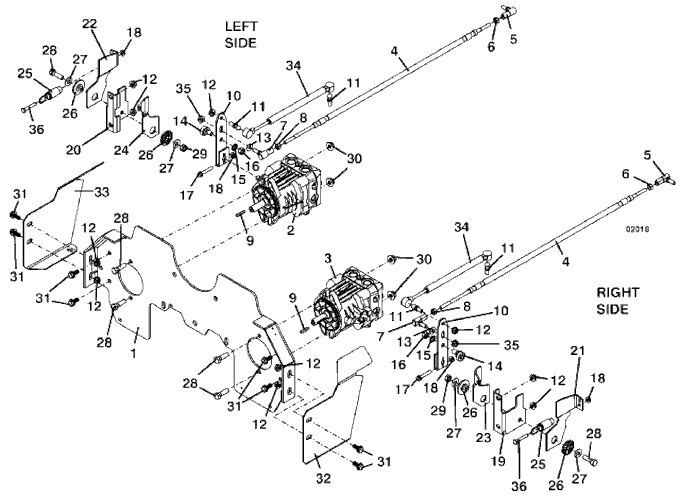

220 • Drive Assembly - Diagram 2

2008

Drive Assembly, part 2

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200 Pump Plate with Fans

644634

2

left Hydro Pump - no fan

391456

3

right Hydro Pump - no fan

391457

4

M1 200 Steering Linkage

604525

5

Righthand Thread Ball Joint

265615

6

Nut

254441

7

Lefthand Thread Ball Joint

265616

8

Nut

254444

9

Square Key

281560

10

10A Pump Control Arm

754094

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

Star External Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Whiz Nut

253025

19

321 10A Neutral Return Mount

754072

20

321 10A left Neutral Return Mount

754073

21

right Neutral Return Front Arm

729136

22

Front left Neutral Return Arm

729137

23

Front right Neutral Return Arm

7729138

24

left Neutral Return Arm

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Whiz Nut

253043

31

Hex Flange Whiz Bolt

253192

32

225 right Pump Plate Shield

754103

33

225 left Pump Plate Shield

754104

34

Damper

285031

35

Whiz Nut

253038

36

Hex Bolt

243035

Return to 220 Index Return to Top
