220 • Electrical Wiring, Lights, & Switches

2010

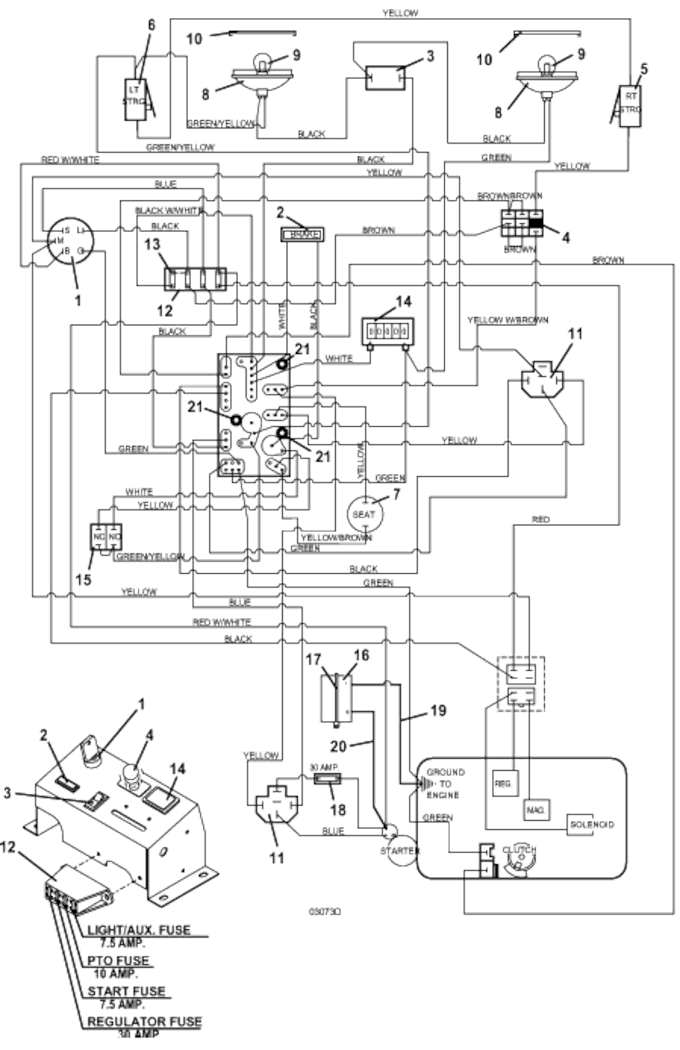

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

5

Lever Switch

183860

-

right Steering Switch Mount

720160

6

Lever Switch

183860

-

left Steering Switch Mount

720161

7

Twist-in Seat Switch

183871

8

Flood Worklamp

182253

9

Bulb for Worklamp

182005

10

Snap Mount Bezel for Worklamp

182251

11

12 volt DC Relay with Mount

184271

-

6mm Type 1 Push-On

184570

-

.250 Faston Terminal

184581

-

5-Way Female Connector

184926

12

Fuse Block

181722

-

Fuse ID Decal

162320

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Wire Fuse Clip

184472

13

Auto ATC 30 amp Fuse

181470

-

Auto ATC 7.50 amp Fuse

181460

-

Auto ATC 10 amp Fuse

181462

14

Snap-In Hour Meter

141551

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

12 Volt Dry Battery

180126

-

220/225/227 Battery Box

644090

17

Battery Hold-Down Strap

604785

18

Inline Auto Fuse Holder

181735

-

Auto ATC 30 amp Fuse

181470

19

30" Black Battery Cable

180290

20

30" Red Battery Cable

180330

-

Starter Terminal Boot

425219

21

PC Board Support Spacer

423690

22

225/220 2003 Wiring Assembly

605900

23

200/600T Console Pic Decal

161122
