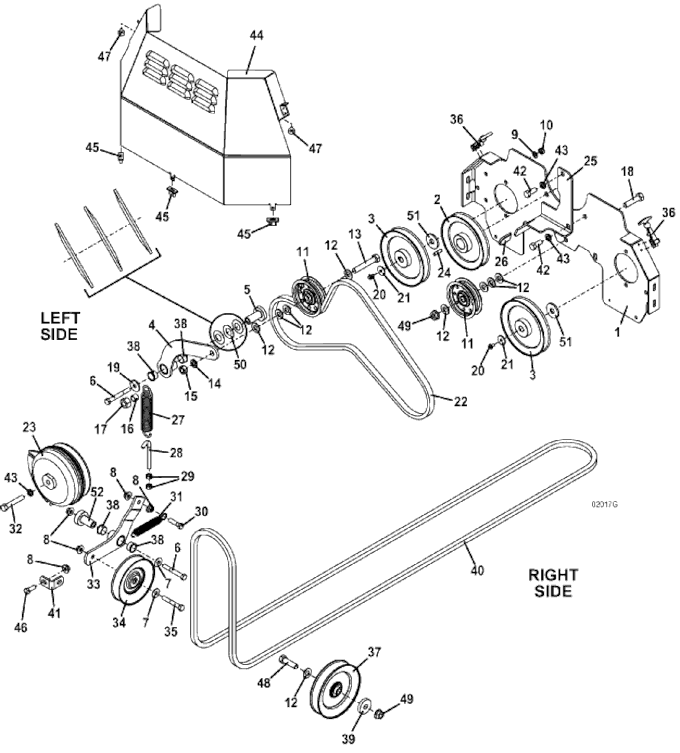

220 • Drive Assembly - Diagram 1

2011

Drive Assembly, part 1

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200 Pump Plate with Fans

644634

2

Sheave

415899

3

Sheave

415907

4

200 Pumps Idler Arm

824573

5

Pedestal Bearing

121651

6

Hex Bolt

243365

7

Washer

257040

8

Whiz Nut

253043

9

Lock Washer

257412

10

Lock Nut

253890

11

Idler

393195

12

Washer

257062

13

Hex Bolt

243601

14

Lock Washer

257432

15

Nut

254470

16

Nylon Bearing

422558

17

Lock Nut

253930

18

Hex Bolt

243580

19

Washer

774020

20

Hex Bolt

270821

21

Flat Washer

257019

22

Belt

382034

23

Electric Clutch

388740

24

Square Key

281582

25

M1 Anti Rotation Bracket

755125

26

Clutch Bracket Cover

422088

27

Extension Spring

283848

28

Idler Adjustment J Bolt

730391

29

Nut

254450

30

Hex Bolt

243340

31

Extension Spring with Swivel

283820

32

Hex Bolt

243470

33

Mule Drive Idler Arm Assembly

824486

34

Idler

393376

35

Hex Bolt

243355

36

Rubber Draw Latch

281301

37

Idler

393390

38

Oilite Bearing

121756

39

Washer

883804

40

Belt

382079

41

M1 Idler Spring Bracket

732520

42

Hex Bolt

243445

43

Lock Washer

257422

44

225 Rear Shield Assembly

604755

45

Rear Belt Shield Isolator

422090

46

Hex Bolt

243330

47

Rubber Bumper

424015

48

Hex Bolt

243575

49

Whiz Nut

253066

50

Spring Washer

257319

51

Pump Pulley Spacer

884309

52

Pedestal Bearing

121650

Return to 220 Index Return to Top
