220 • Drive Assembly - Diagram 2

2011

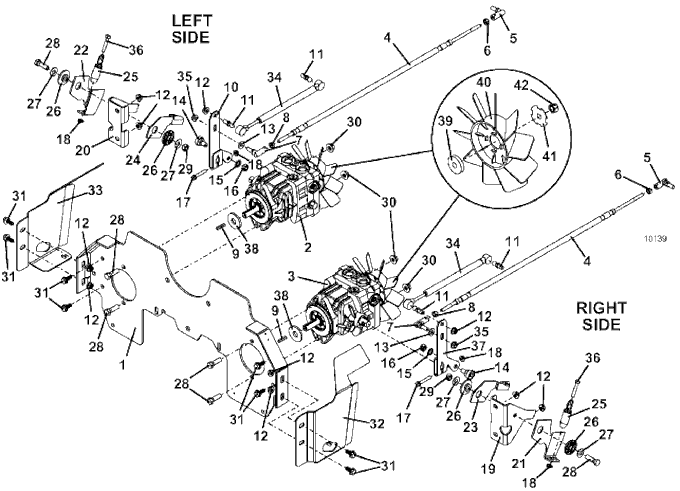

Drive Assembly, part 2

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200 Pump Plate with Fans

644634

2

H4 Left Hydro Pump w/7" Fan

391446

3

H4 Right Hydro Pump w/7" Fan

391447

4

M1 Steering Linkage

604524

5

Righthand Thread Ball Joint

265615

6

Nut

254441

7

Lefthand Thread Ball Joint

265616

8

Nut

254444

9

Square Key

281560

10

200 Left Control Arm

724953

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

Star External Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Whiz Nut

253025

19

200 Right Neutral Return Mount

724956

20

200 Left Neutral Return Mount

724957

21

Right Neutral Return Front Arm

729136

22

Front Left Neutral Return Arm

729137

23

Front Right Neutral Return Arm

7729138

24

Left Neutral Return Arm

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Whiz Nut

253043

31

Hex Flange Whiz Bolt

253192

32

200 Right Pump Plate Shield

729648

33

200 Left Pump Plate Shield

729649

34

Damper

285031

35

Whiz Nut

253038

36

Hex Bolt

243035

37

200 Rt Control Arm

724952

38

Pump Pulley Spacer

884309

39

H2 Fan Hub

130430

40

H2 & T Hydro Fan

130431

41

Fan Retainer Washer

130432

42

Nylon Insert Nut

253461

Return to 220 Index Return to Top
