Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

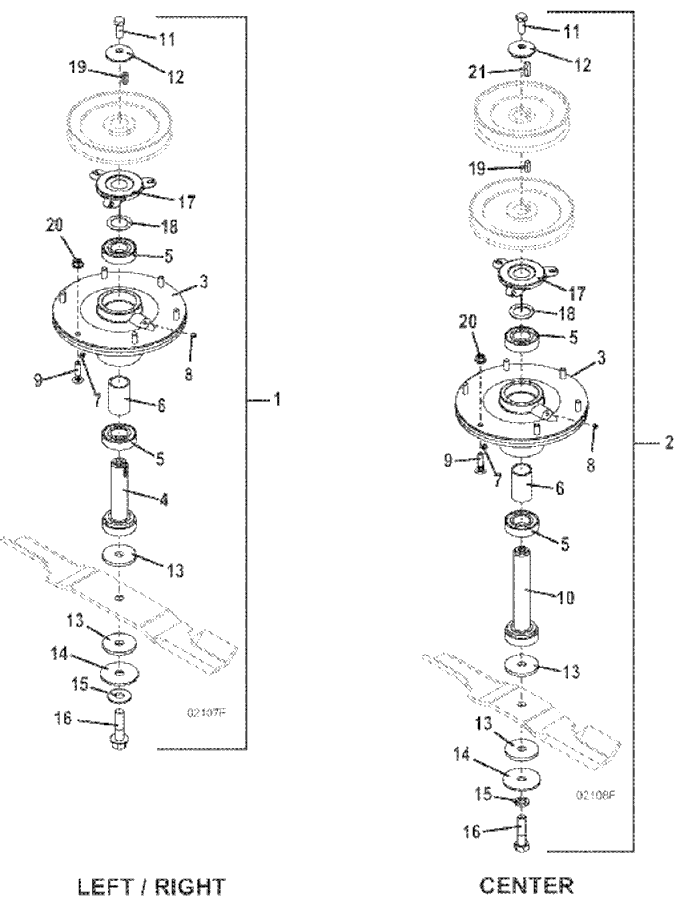

220 • Blade Spindle Assembly - M148

2012

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M148 Right Spindle Assembly

623760

2

M148 Center Spindle Assembly

623761

3

Alum Spindle Housing Assembly

604412

4

4.75 25mm Spindle Shaft Assembly

604764

5

25mm Regular Seal Ball Bearing

110081

6

Shallow Spacer Bearing

903645

7

Relief Plug

280705

8

Set Screw

259305

9

Round Head Ribbed Neck Bolt

247141

10

25mm Spindle Shaft Assembly

604770

11

Hex Bolt

243331

12

Cupped Washer

257041

13

Fiber Washer

421200

14

Washer

257061

15

Blade Spindle - Hardened Washer

257057

16

Grade 5 Hex Bolt

243581

17

Shield Bearing

721167

18

Washer

257106

19

Square Key

281580

20

Whiz Nut

253035

21

Square Key

281582
