Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

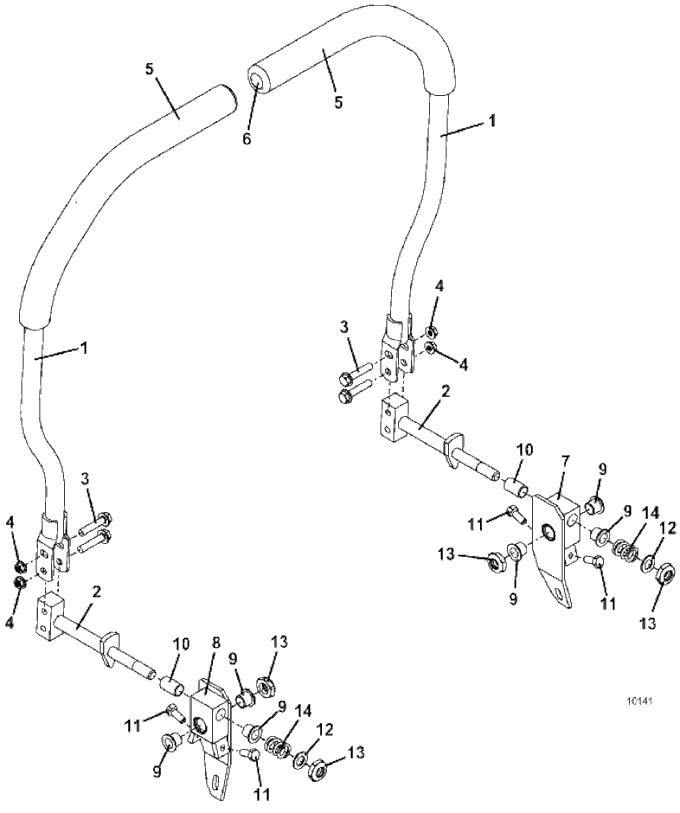

220 • Steering Assembly

2012

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wide STD Steering Lever Assembly

604778

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 ID Vinyl Cap

422095

7

200V Right Steering Pivot with Stop & Bearings

604713

8

200V Left Steering Pivot with Stop & Bearings

604714

9

Sleeve Bearing with Flange

422556

10

Sleeve Bearing

422557

11

Hex Bolt

243197

12

Washer

257063

13

Nylon Insert Nut

253470

14

Compression Spring

283324
