Genuine OEM Grasshopper® Mower Parts Diagrams

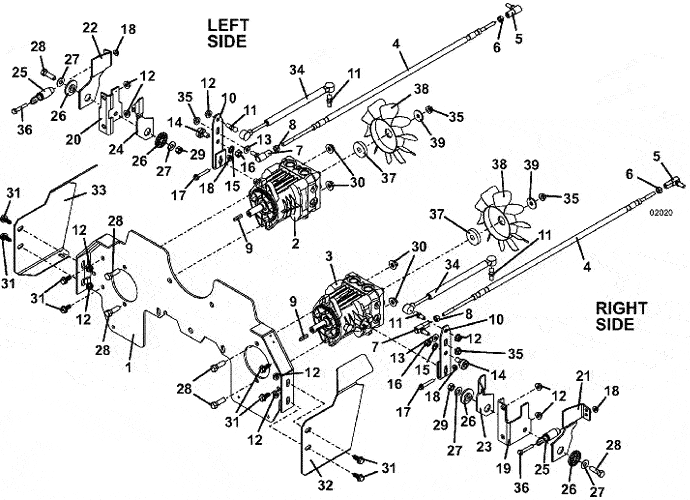

223 / 227 • Drive Assembly - diagram 2
2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Pump Plate with Fans - 200 |
644634 |
2 |
Hydro Pump with Shaft - left |
391460 |
3 |
Hydro Pump with Shaft - right |
391461 |
4 |
Steering Linkage - M1 200 |
604525 |
5 |
Ball Joint |
265615 |
6 |
Nut .312-24 |
254441 |
7 |
Ball Joint - Lefthand Thread |
265616 |
8 |
Nut .312-24 |
254444 |
9 |
Square Key .187 x 1 |
281560 |
10 |
Pump Control Arm - 10A |
754094 |
11 |
Ball Stud |
265680 |
12 |
Whiz Nut |
253035 |
13 |
Washer |
257020 |
14 |
Eccentric Roller Assembly |
603726 |
15 |
External Star Washer |
257410 |
16 |
Nut .375-16 |
254450 |
17 |
Hex Whiz Bolt .25-20 x 1.5 |
253182 |
18 |
Whiz Nut .250-20 |
253025 |
19 |
Neutral Return Mount - right 321 10A |
754072 |
20 |
Neutral Return Mount - left 321 10A |
754073 |
21 |
Neutral Return Front Arm - right |
729136 |
22 |
Neutral Return Front Arm - left |
729137 |
23 |
Neutral Return Arm - right |
729138 |
24 |
Neutral Return Arm - left |
729139 |
25 |
Extension Spring |
283823 |
26 |
Neutral Return Pivot Bearing |
822304 |
27 |
Washer |
257030 |
28 |
Hex Bolt .375-16 x 1.25 |
243335 |
29 |
Lock Nut .375-16 |
253890 |
30 |
Whiz Nut .375-16 |
253043 |
31 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
32 |
right Pump Plate Shield 225 |
754103 |
33 |
left Pump Plate Shield 225 |
754104 |
34 |
Damper |
285031 |
35 |
Whiz Nut .312-24 |
253038 |
36 |
Hex Bolt .250-20 x 1.500 |
243035 |
37 |
Fan Mount Hub 10A |
885123 |
38 |
7" Nylon Fan |
320857 |
39 |
Retainer Washer |
774015 |
