Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

223 / 227 • Pump Assembly

2008

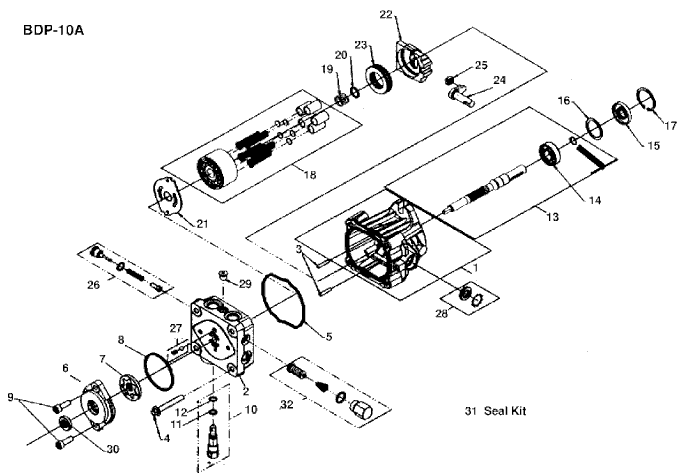

Pump Breakdown

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Kit

130052

2

End cap Kit With thru shaft and SCR

130042

-

End cap Kit With thru shaft and shock valve

130043

-

End cap Kit without thru shaft

130039

3

Dowel Pin

130046

4

Housing Bolt

271075

5

Molded Seal Ring

130181

6

Charge Pump Cover

130022

-

Charge Cover

130023

7

Gerotor Set

130062

-

Gerotor Assembly

130061

8

Charge Cover Square Seal Ring

130020

-

Charge Cover O-Ring

130021

9

M6 Socket Head Screw

270825

-

Hex Bolt

243205

-

M8 Socket Head Screw

270078

10

Bypass Valve (NOT AVAILABLE)

000000

11

Backup Ring

130017

12

Bypass Valve O-Ring

130018

13

Shaft and Bearing Kit W/ Thru Shaft

130174

-

Shaft and Bearing Kit W/O Thru Shaft

130173

14

Input Bearing

130078

15

Input Seal

125365

16

Spacer

130087

17

Retaining Ring

130090

18

Block Kit

130151

19

Block Spring

130014

20

Block Thrust Washer

130218

21

Valve Plate

130212

22

Swashplate

130182

23

Thrust Bearing

130013

24

Trunnion Arm

130036

25

Guide Block

130065

26

Check Valve Kit

130156

-

Check Plug O-Ring

130031

27

Charge Relief Kit

130019

28

Trunnion Seal Kit

125355

29

Straight Thread Plug

103739

30

Block Kit

125164

31

Thrust Bearing

130175

32

Shock Valve Kit

130160
