223 / 227 • Pump Assembly

2010-5

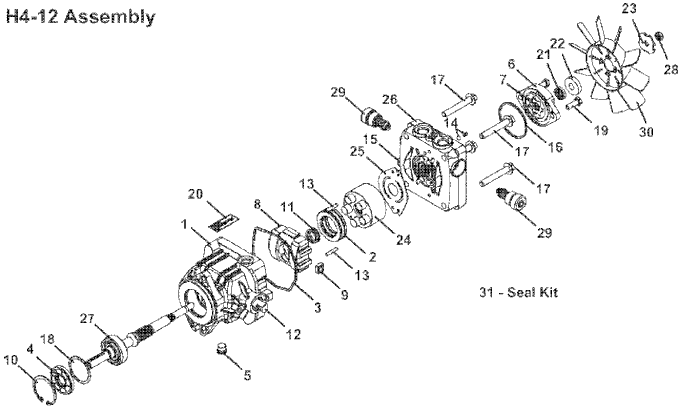

Pump Breakdown

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Assembly

130454

2

T Thrust Bearing

130412

3

Seal Ring

130456

4

Input Seal

125370

5

O-Ring

130447

6

Charge Cover

130422

7

Gerotor Set

130424

8

T Swashblock

130414

9

T Control Block

130416

10

Retaining Ring

130404

11

T Center Spring

130472

12

Trunnion Arm

130418

-

H1A 12 Trunnion Seal

125358

-

Retaining Ring

130402

13

Dowel Pin

130458

14

Charge Relief Kit

130427

15

Bypass Valve

130448

-

Backup Ring

130517

-

O-Ring

130518

16

Seal Ring - Charge Cover

130420

17

NOT AVAILABLE

000000

18

Washer

130406

19

Hex HD

271023

20

NOT AVAILABLE

000000

21

Thru Shaft Seal

125162

22

H2 Fan Hub

130430

23

Fan Retainer Washer

130432

24

T Piston & Barrel Assembly

130450

25

Port Plate

130465

26

Left End Block

130462

-

Right End Block

130463

27

Shaft Assembly

130474

-

Input Bearing

130480

-

Bearing Retaining Ring

130481

28

Nylon Insert Nut

253461

29

NOT AVAILABLE

000000

-

O-Ring

126540

30

H2 & T Hydro Fan

130431

31

Seal Kit

130400
