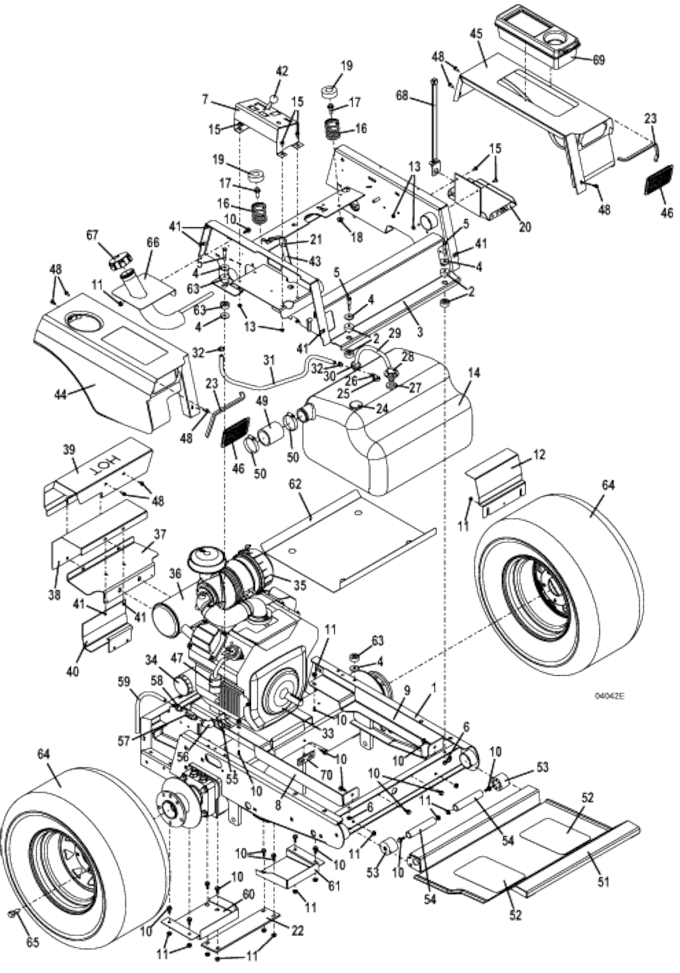

1

200M1 Front Port Frame

644280

2

Rubber Step Bushing

257037

3

200/300B Upper Frame

644889

4

Washer

774020

5

Hex Bolt .312-18 x 1.750

243220

6

Nylon Insert Nut .312-18

253450

7

Console Panel 200 w/Decal

693115

8

Tank Rail - Right

645800

9

Tank Rail - Left

645801

10

Hex Flange Whiz Bolt .312-18 x .75

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722948

13

Whiz Nut .250-20

253025

14

M1 .312 Fuel Tank Assembly

605799

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box 220/225/227

644090

21

Handle Grip

422150

22

Belt Guard Strap

783277

23

Fender Edge Trim - 11.5

822632

24

Intank Fuel Gauge

141142

-

Grommet

424275

25

Fuel Tube Bushing

101875

26

Fuel Tube

363925

27

Fuel Tank Valve Bushing

101874

28

Fuel Tank Valve

100215

29

Fuel Hose

821736

30

In-Line Filter

366562

31

Fuel Hose

821736

32

Hose Spring Clamp

280260

33

OHV M1 23HP Kohler Engine

100158

-

Kohler AC Engine

100189

34

Kohler Oil Filter

100802

35

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

36

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

37

225 Lower Muffler Bracket

729312

38

Inner Panel Shield

722309

39

Muffler Shield

722391

40

Shield Mount Bracket Assembly

605125

41

Speed Nut .250-20

254431

42

Mechanical Choke 32.25 x 29.5

142214

43

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Assembly

722009

44

200 Right Fender w/Decals

693228

45

200 Left Fender w/Decals

693229

46

Plug for Work Lamp Hole

422079

47

Kohler Fuel Filter

101001

48

Hex Whiz Bolt

253173

49

Fuel Tank Filler Hose

422027

50

Screw Type Hose Clamp

280305

51

M1 On-Frame Foot Rest

644256

-

M1 Frame-Mount Foot Rest

644228

52

Foot Rest Tread

420902

53

Seat Isolator

424095

54

Seat Hinge Pin

644618

55

Nipple

364508

56

ELL

362215

57

Oil Drain Valve

143610

58

Nylon Fitting

363854

59

Oil Drain Tube

821752

60

right Hydro 200 Debris Shield

723024

61

left Hydro 200 Debris Shield

723025

62

M1 Fuel Tank Shield

722949

63

Step Bushing

257038

64

Wheel & Tire 23 x 10.5 x 12

483960

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 24 x 12 x 12

482486

-

Tire Only 24 x 12 x 12 AT101 Bar

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Tire 24 x 12 x 12

483965

-

12" Wheel & Tire Bar (right)

483968

-

12" Wheel & Tire Bar (left)

483969

65

Lug Bolt

248565

66

Fuel Filler

644886

67

Sealed Tether External Fuel Cap

100213

68

Battery Hold Down Strap

604785

69

Tool Box

422040

70

M1 Deck Belt - Belt Guide

645005

71

Decal Set - 223

605521

72

Decal Set - 227

605522
