Genuine OEM Grasshopper® Mower Parts Diagrams

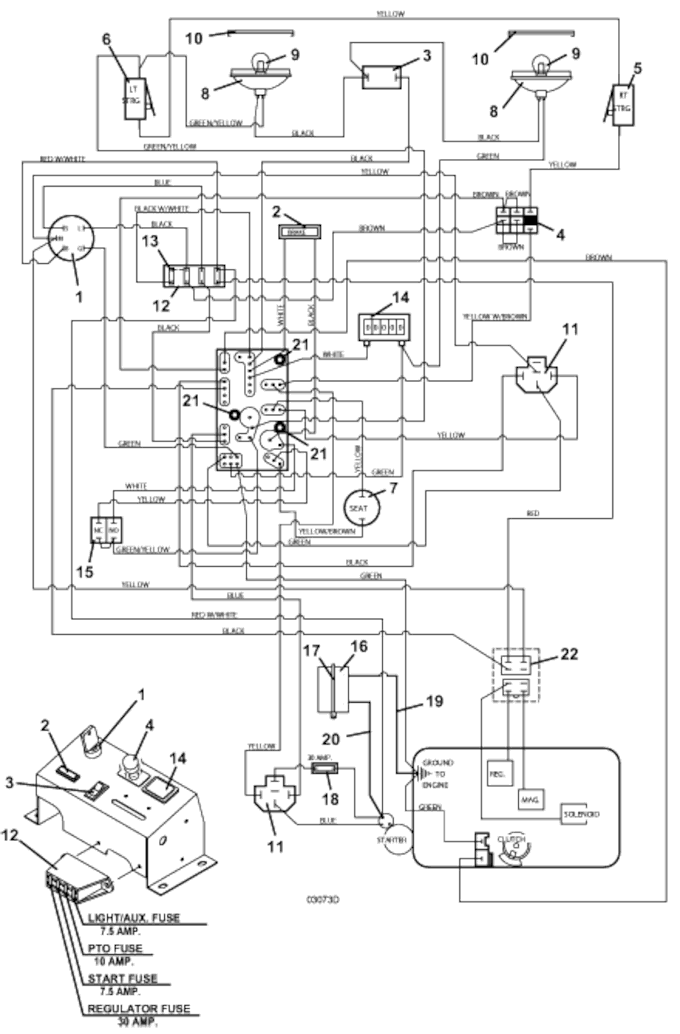

223 / 227 • Electrical Wiring, Lights, & Switches
2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Indak Key Ignition w/Cover |
101101 |
- |
Nut .625-32 |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push/Pull Switch |
183925 |
5 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
6 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
7 |
Twist-in Seat Switch |
183871 |
8 |
Worklamp - Flood (includes bulb) |
182253 |
9 |
Bulb for Worklamp |
182005 |
10 |
Snap Mount Bezel for Worklamp |
182251 |
11 |
12 volt DC Relay with Mount |
184271 |
- |
Type 1 6mm Pushon |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5 Way Female Connector |
184926 |
12 |
Fuse Block |
181722 |
- |
Fuse ID Decal |
162320 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Fuse Clip - Double Clip |
184472 |
13 |
Auto ATC - 30 Fuse |
181470 |
- |
Auto ATC - 7.50 Fuse |
181460 |
- |
Auto ATC - 10 Fuse |
181462 |
14 |
Snap-In Hour Meter |
141551 |
15 |
Brake Interlock Switch |
183894 |
16 |
12 Volt Battery - Wet |
180125 |
- |
12 Volt Battery - Dry |
180126 |
- |
Battery Box for 220 / 225 / 227 |
644090 |
17 |
Battery Hold-Down Strap |
604785 |
18 |
Inline Auto Fuse Holder |
181735 |
- |
Auto ATC - 30 Fuse |
181470 |
19 |
30" Black Battery Cable |
180290 |
20 |
30" Red Battery Cable |
180330 |
- |
Starter Terminal Boot |
425219 |
21 |
PC Board Support Spacer |
423690 |
22 |
4 Way Mount Connector |
184936 |
23 |
Wiring Assembly |
605900 |
24 |
Console Pic 200/600T Decal |
161122 |
Return to 223/227 Index
