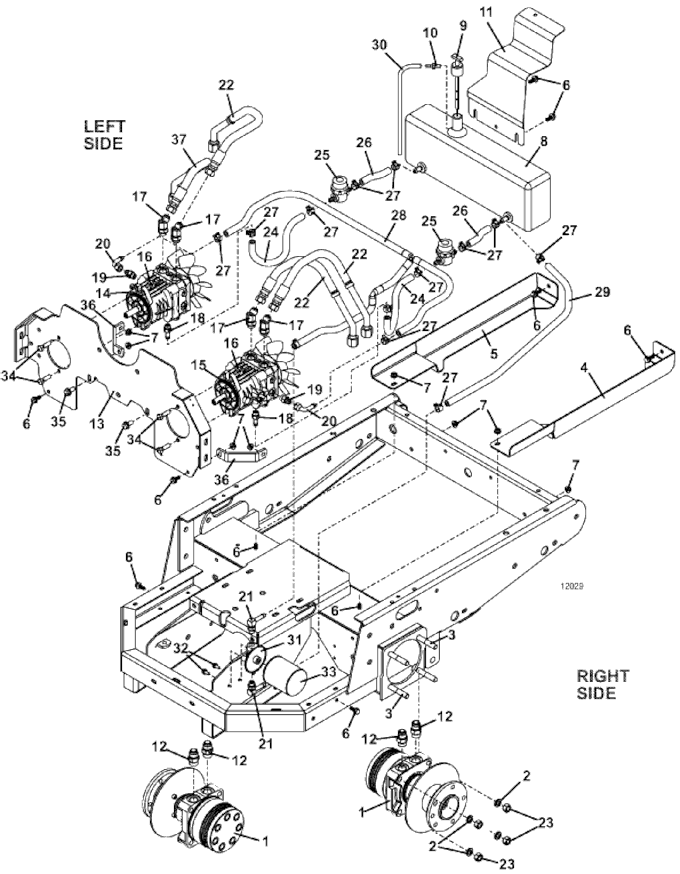

223 / 227 • Reservoir & Hose Assembly
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Wheel Motor with Hub |
603603 |
2 |
Lock Washer |
257432 |
3 |
Wheel Motor Diamond Head Bolt |
243597 |
4 |
Tank Rail - Right |
645800 |
5 |
Tank Rail - Left |
645801 |
6 |
Hex Flange Whiz Bolt .312-18 x .75 GR 5 |
253192 |
7 |
Whiz Nut |
253035 |
8 |
Oil Reservoir Assembly - M1 200 |
603587 |
- |
Fuel Tube Bushing (Grommet) |
101875 |
- |
Straight Fitting |
363637 |
- |
90 Degree Fitting |
363638 |
9 |
M1 Oil Reservoir Dipstick |
100728 |
10 |
Straight Barbed Fitting |
363826 |
11 |
Oil/Fuel Tank Anchor |
723041 |
12 |
Adapter O Ring |
360069 |
13 |
Pump Plate with Fans - 200 |
644634 |
14 |
Hydro Pump with 7" Fan - Left |
391464 |
15 |
Hydro Pump with 7" Fan - Right |
391465 |
16 |
Whiz Nut .375-16 |
253043 |
17 |
Adapter Fitting |
360046 |
18 |
Steel O Ring Boss Fitting |
363864 |
19 |
Adapter |
360057 |
20 |
Fitting |
363846 |
21 |
Beaded Swivel Adapter, 90 degree |
360056 |
22 |
Hose Assembly w/Sleeve |
424374 |
23 |
Nut |
254470 |
24 |
Hydraulic Hose |
821782 |
25 |
In-Line Strainer |
366551 |
26 |
Hydraulic Hose |
821778 |
27 |
Spring Hose Clamp .375 |
280264 |
28 |
Hose Assembly |
424318 |
29 |
Hydraulic Hose |
821789 |
30 |
Clear Vent Hose |
821724 |
31 |
Filter Base - M1 Series |
101024 |
32 |
Hex Whiz Bolt .250-20 x .500 |
253173 |
33 |
High-Efficiency Transaxle Oil Filter |
100855 |
34 |
Hex Bolt .375-16 x 1.25 |
243335 |
35 |
Flange Whiz Bolt .375-16 x 1 |
253203 |
36 |
Pump Plate Rein Strap |
732882 |
37 |
Hose Assembly w/Sleeve |
424367 |
