Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

225 • Deck Carrier Assembly - M148 & M152

2021

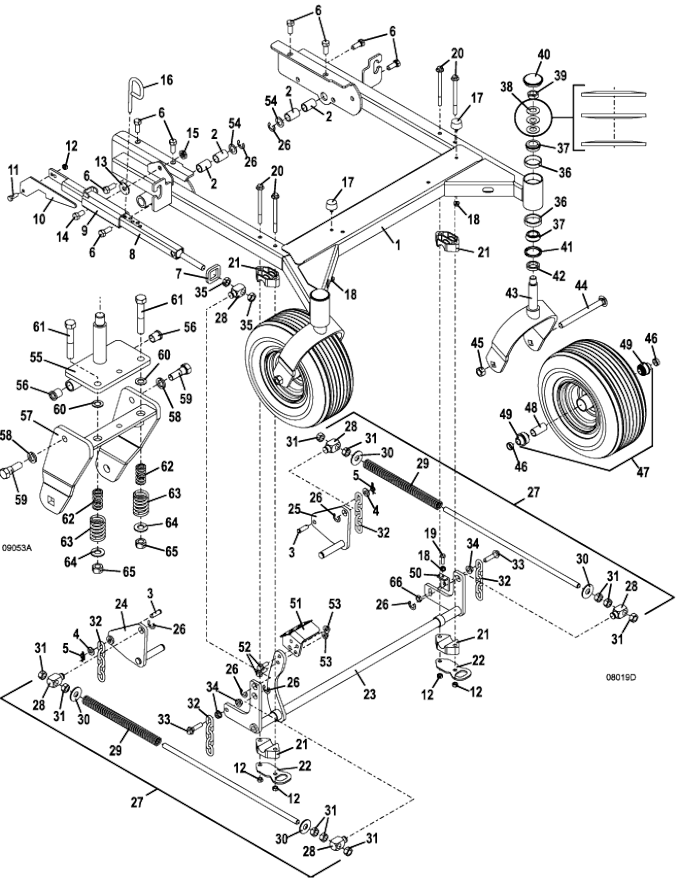

48 Inch and 52 Inch Deck Carrier Assembly Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Carrier (without footrest) - M152

644136

-

Cutting Height Decal

162187

2

Poly Bearing

422640

3

Clevis Pin .437 x 1.25

261405

4

Washer

257051

5

Cotter Ring

260612

6

Hex Bolt

243565

-

Flange Spiral Lock Nut

253067

7

Height Adjustment Spacer M1

423696

8

Height Adjustment Tube M1

644778

9

Latch Tube Guide

644305

10

Deck Latch

775104

11

Hex Bolt .375-16 x 1

243330

12

Lock Nut .375-16

253890

13

Nylon Washer

821516

14

Hex Bolt .500-13 x 1

243560

15

Nylon Nut Insert

253470

16

Height Adjustment Deck Pin

730434

17

Rubber Bumper

424052

18

Whiz Nut

253035

19

Hex Bolt

243205

20

Flange Bolt .375-16 x 5

253215

21

Bearing Block - M1

423643

22

Lift Bearing Plate

774064

23

Adjustable Lift Lever - M1 Deck

644482

24

right Rear Deck Rocker - M1

644707

25

left Rear Deck Rocker - M1

644708

26

External Retainer

263529

27

M152 Rod & Spring Assembly

326100

28

Spring Rod Mount Shaft

882035

29

Compression Spring

283395

30

Washer

257080

31

Nut .625-11

254490

32

Chain - 5 Links M1

820331

33

Hex Bolt .437-.14 x 1.75 GR 8

243458

34

Whiz Nut .437-14

253058

35

Nut .625-18

254493

36

Bearing Cup

123522

37

Taper Bearing 1.000 ID

122522

38

Spring Washer

257320

39

Jam Nylon-top Lock Nut

254505

40

Dust Cap

481434

41

Seal

125855

42

Spacer

282615

43

Tailwheel Fork Tapered Bearing

645221

44

Carriage Bolt

247726

45

Lock Nut .625-11

253970

46

Axle Spacer

902422

47

Wheel Assembly with Bearings

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire 6 x 4.5

483306

48

Axle Spacer

423750

49

Wheel Ball Bearing - .625 DP

120048

50

Adjusting Strap

732586

51

Carrier Adjustment Foot Pedal

644467

52

Flange Whiz Bolt

253203

53

Whiz Nut

253043

54

18 Gauge Bushing Washer

257092

55

Suspension Fork Yoke Pivot

643677

56

Oilite Bearing

121734

57

Suspension Fork Yoke

643313

58

Lock Washer

257442

59

Suspension Fork Pivot Bolt

887114

60

Washer

257063

61

Hex Bolt

243600

62

Compression Spring

283326

63

Compression Spring

283389

64

Washer

257062

65

Lock Nut

253930

66

Nut

254461
