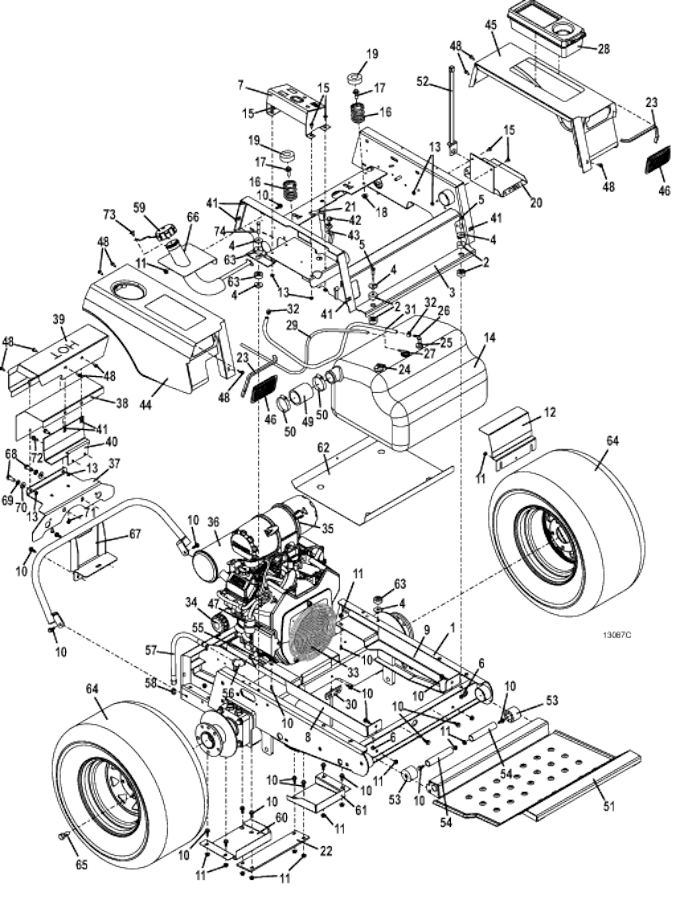

1

200M1 Front Port Frame

644280

2

Rubber Step Bushing

257037

3

200/300B Upper Frame

644889

4

Washer

774020

5

Hex Bolt .312-18 x 1.750

243220

6

Nylon Insert Nut .312-18

253450

7

200/300 Series Console with Decal

693119

8

Tank Rail - Right

645800

9

Tank Rail - Left

645801

10

Hex Flange Whiz Bolt .312-18 x .75

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722948

13

Whiz Nut .250-20

253025

14

M1 Gas Tank Assembly

605801

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box 220/225/227

644090

21

Handle Grip

422150

22

Belt Guard Strap

783277

23

Fender Edge Trim - 11.5

822632

24

Fuel Sender

141235

-

Electric Fuel Sender Grommet

424274

25

Grommet

424275

26

Fuel Tube

363925

27

Fuel Tank Valve Kit

606830

28

Tool Box

422040

29

Vapor Fuel Hose

821742

30

M1 Deck Belt - Belt Guide

645005

31

Fuel Hose

821736

32

Hose Spring Clamp

280260

33

Kohler Air Cooled Engine

100189

34

Kohler Oil Filter

100802

35

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

36

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

37

Muffler Bracket

766310

38

Inner Panel Shield

722309

39

Muffler Shield

722391

40

Shield Mount Bracket Assembly

605125

41

Speed Nut .250-20

254431

42

Mechanical Choke

142239

43

Throttle Assembly

605830

-

Control Cable Assembly

323640

-

Heavy Duty Throttle Stop

722736

44

200 Right Fender w/Decals

693228

45

200 Left Fender w/Decals

693229

46

Plug for Work Lamp Hole

422079

47

Kohler Fuel Filter

101001

48

Hex Whiz Bolt

253173

49

Fuel Tank Filler Hose

422027

50

Screw Type Hose Clamp

280305

51

M1 On-Frame Foot Rest

644256

52

Battery Hold Down Strap

604785

53

Seat Isolator

424095

54

Seat Hinge Pin

644618

55

Nipple

364508

56

ELL

362215

57

Engine Oil Drain Hose Assembly

424474

58

Metal Pipe Plug

365515

59

Sealed Tether Fuel Cap Kit

606360

60

Right Hydro 200 Debris Shield

723024

61

Left Hydro 200 Debris Shield

723025

62

M1 Fuel Tank Shield

722949

63

Step Bushing

257038

64

Wheel & Turf Tire

483955

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 24 x 12 x 12

482486

-

Turf Tire 23 x 9.5 x 12

482488

-

Wheel

483435

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Turf Tire 23 x 10.5 x 12

483960

-

Wheel & Tire 24 x 12 x 12

483965

-

12" Wheel & Tire Bar (right)

483968

-

12" Wheel & Tire Bar (left)

483969

65

Lug Bolt

248565

66

Fuel Filler

644886

67

Bumper

645582

68

Hex Bolt

243445

69

Lock Washer

257422

70

Washer

257040

71

Hex Bolt

270821

72

Flanged Hex Bolt with Serrations

271021

73

Plastic Push Stud

246975

74

Hex Bolt

243225

75

Decal Set - 225

605427
