Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

225 • Electrical Wiring, Lights, & Switches

2021

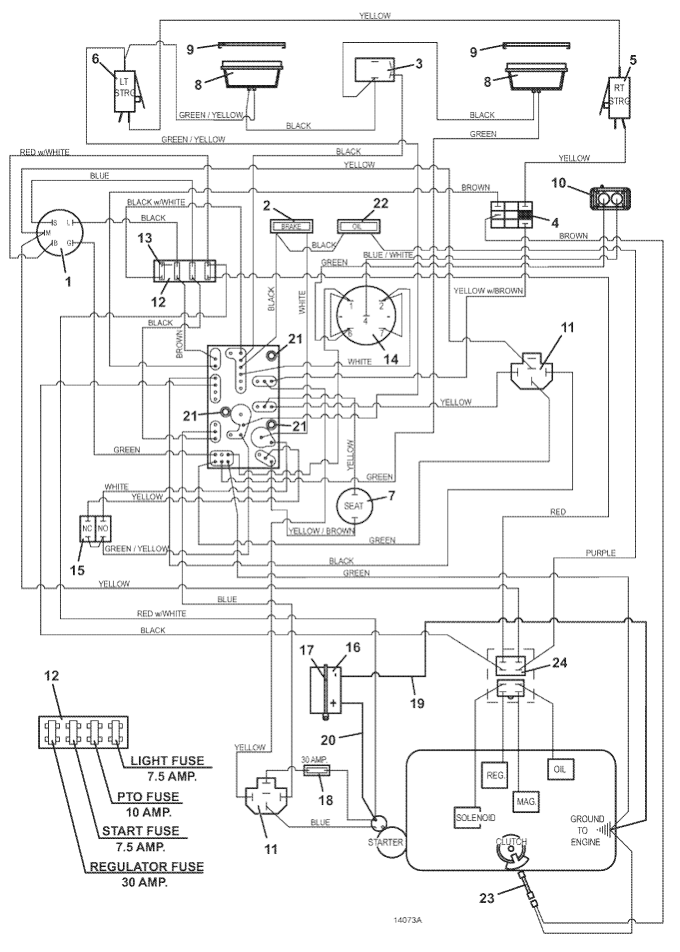

Wiring Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Indak Ignition Key with Cover

101101

-

.250 Pushon Terminal Type 1

184578

-

.250 Pushon Terminal

184580

-

5-Way Type 9 Connector

184925

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

-

9-Way Connector

184942

5

Lever Switch

183860

-

Right Steering Switch Mount

720160

6

Lever Switch

183860

-

Left Steering Switch Mount

720161

7

Twist-in Seat Switch

183871

8

LED Flood Lamp

182261

9

Snap Mount Bezel for Worklamp

182251

10

2 Terminal Connector

184907

-

Fuel Sender

141235

11

12 volt DC Relay with Mount

184271

12

Fuse Block

181722

-

Fuse ID Decal

162320

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Fuse Clip - Double Clip

184472

-

Whiz Nut

253020

-

Hex Whiz Bolt

253167

13

Auto ATC - 30 Fuse

181470

-

Auto ATC - 7.50 Fuse

181460

-

Auto ATC - 10 Fuse

181462

14

Fuel Level Guage / Hour Meter

141122

15

Brake Interlock Switch

183894

16

12 Volt Battery - Wet

180125

-

12 Volt Battery - Dry

180126

-

Battery Box for 220 / 225 / 227

644090

17

Battery Hold-Down Strap

604785

18

Inline Auto Fuse Holder

181735

-

Auto ATC - 30 Fuse

181470

19

30" Black Battery Cable

180290

20

30" Red Battery Cable

180330

-

Starter Terminal Boot

425219

21

PC Board Support Spacer

423690

22

Oil Indicator Light

182327

23

Modified Pigtail Clutch

604431

24

4 Way Mount Connector

184936

25

Wire Assembly

606850
