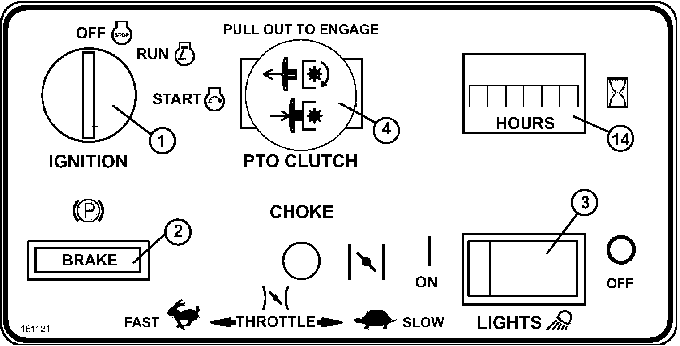

Genuine OEM Grasshopper® Mower Parts Diagrams
225V • Console
2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push/Pull Switch |
183925 |
14 |
Snap-In Hour Meter |
141551 |
15 |
Console Decal |
161121 |
