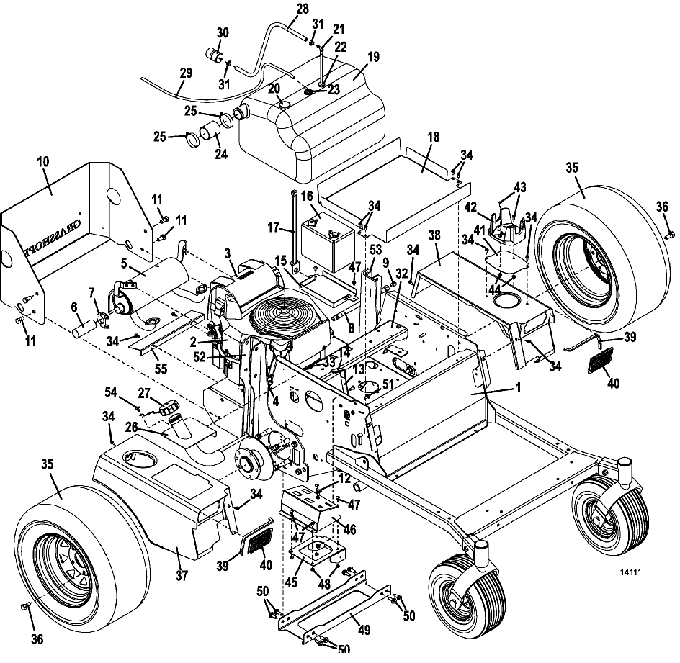

1

200V 48/52 Frame

645201

-

200V 61 Frame

645202

2

25HP Vertical Kohler Engine

100154

-

Self Tapping Hex Bolt

243332

3

Kohler Confidant Air Filter

100917

-

Kohler Preclean Air Filter

100916

4

Kohler Oil Filter

100802

5

Muffler with Heat Shield Vert 25HP

101214

-

Muffler Exhaust Gasket for Kohler Vertical Engine

101041

6

M2 Exhaust Pipe

942400

7

Exhaust Clamp

101356

8

Drain Hose Assembly

424319

9

Metal Pipe Plug

365515

10

Rear Shield

725901

11

Hex Bolt

243560

12

Mechanical Choke

142250

13

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

14

Handle Grip

422150

15

200V Battery Tray

723038

16

12 Volt Wet Battery

180125

17

Battery Hold Down Strap

604785

18

200V Tank Shield

722926

19

200V Tank Assembly

605798

20

Fuel Intake Gauge

141142

-

Grommet

424275

21

Fuel Tube

363925

22

Grommet

101875

23

Fuel Tank Valve Kit

606830

24

Fuel Tank Filler Hose

422027

25

Screw Type Hose Clamp

280305

26

200 Fuel Filler

644886

27

Sealed Tether Fuel Cap Kit

606360

28

Fuel Hose

821767

29

Fuel Vapor Hose

821755

30

Kohler Fuel Filter

101001

31

Spring Hose Clamp

280260

32

200V Crossmember Seat

729577

33

Hex Whiz Bolt

253175

34

Hex Whiz Bolt

253173

35

Wheel & Turf Tire

483960

-

Turf Tire 23 x 10.5 x 12

482485

-

Wheel w/ 52" Deck

483445

36

Lug Nut

248565

37

Rt 200V Fender

644884

38

Lt 200V Fender

644885

39

Trim

822632

40

Work Lamp Hole Plug

422079

41

M2 Reservoir Access Panel

722804

42

Cup Holder

150225

43

Cap Screw

259030

44

Nut

254436

45

100 Console Bracket

644410

46

M2/200v Console

645102

47

Truss Whiz Bolt

253176

48

Whiz Nut

253025

49

200V Wheel Motor Mount/Crossmember

724924

50

Flange Whiz Bolt

253203

-

Whiz Nut

253043

51

Truss Whiz Bolt

253177

52

Rt 200V Wheel Motor & ROPS Mount

645206

53

Lt 200V Wheel Motor & ROPS Mount

645207

54

.250 Plastic Push Stud

246975

55

120 Heat Shield

722974

56

225V Decal Set

605342
