1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Seat Switch

183870

8

Flood Worklamp

182253

9

Light Bulb for Headlight

182005

10

Snap Mount Worklamp Bezel

182251

11

12V DC Relay with Mount

184271

12

Fuse Block

181720

-

Fuse ID Decal

162320

-

Fuse Block Cover

181721

13

30 amp Auto ATC Fuse

181470

-

7.5 Amp Auto ATC Fuse

181460

-

10 Amp Auto ATC Fuse

181462

14

Snap In Hour Meter

141551

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

M2 Battery Box

723230

17

Battery Hold Down Strap

604785

18

PC Board Support Spacer

423690

19

30" Black Battery Cable

180290

-

Whiz Nut

253035

-

Hex Flange Whiz Bolt

253193

20

16" Red Battery Cable

180315

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

21

Inline Fuse Holder

181735

-

Twist Fuse Retainer

181740

22

Pigtail Cable Assembly

388840

23

6 Terminal Connector (Amp)

184911

-

Mate N-Lock Pin

181768

24

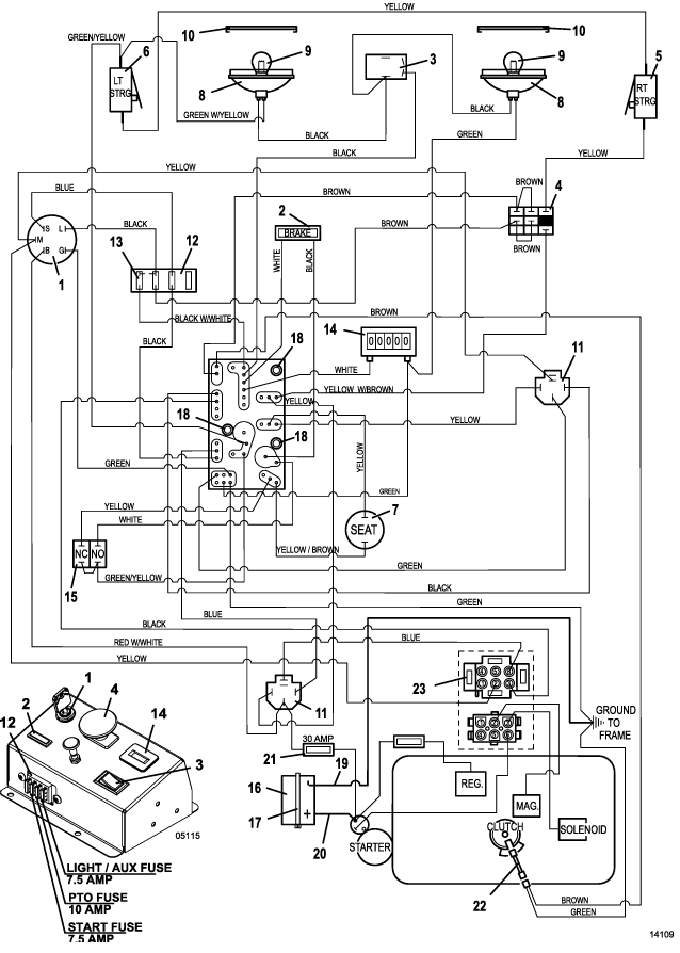

225V Kohler Wiring Assembly

605917
