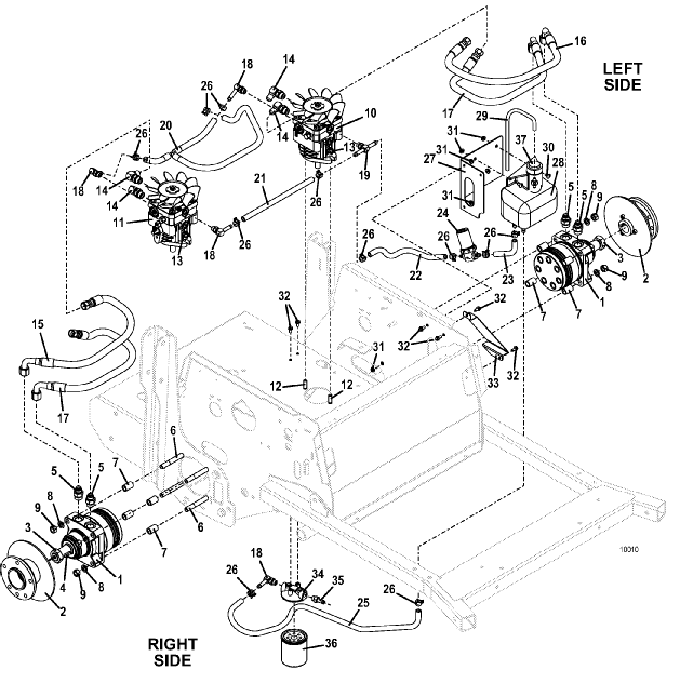

Genuine OEM Grasshopper® Mower Parts Diagrams
226V • Reservoir & Hose Assembly
2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Wheel Motor with Hub for 52" Model (includes items 2 - 4) |
603617 |
- |
Wheel Motor with Hub for 61" Model (includes items 2 - 4) |
603603 |
2 |
Bolt-On Wheel Hub Rotor |
604440 |
3 |
Lock Nut |
253992 |
4 |
Woodruff Key |
281845 |
5 |
O Ring Adapter |
360063 |
6 |
Square Head Bolt |
243622 |
7 |
Wheel Motor Spacer for 52" Model |
902299 |
- |
Wheel Motor Spacer for 61" Model |
942184 |
8 |
Lock Washer |
257432 |
9 |
Nut |
254470 |
10 |
left H3 Hydro Pump with 7" Fan |
391442 |
11 |
right H3 Hydro Pump with 7" Fan |
391443 |
12 |
Hex Bolt |
243335 |
13 |
Whiz Nut |
253043 |
14 |
O-Ring Adapter |
360061 |
15 |
Hose Assembly |
424387 |
16 |
Hose Assembly |
424388 |
17 |
Hose Assembly |
424389 |
18 |
Adapter |
360056 |
19 |
Adjustable -6 MB -6 BD Stem Tee Adapter |
360047 |
20 |
Hose Assembly |
424356 |
21 |
Hydraulic Hose |
821782 |
22 |
Hydraulic Hose |
821783 |
23 |
Hydraulic Hose |
821774 |
24 |
In-Line Strainer |
366554 |
25 |
Hydraulic Hose |
821809 |
26 |
Spring Hose Clamp |
280264 |
27 |
200V Oil Reservoir Mount |
724949 |
28 |
200V Oil Reservoir |
822334 |
29 |
Clear Vent Hose |
821724 |
30 |
Truss Whiz Bolt |
253176 |
31 |
Whiz Nut |
253025 |
32 |
Hex Whiz Bolt |
253173 |
33 |
200V Oil Hoses Cover |
722925 |
34 |
M1 Series Filter Base |
101024 |
35 |
O Ring Boss Fitting |
363864 |
36 |
High-Efficiency Transaxle Oil Filter |
100855 |
37 |
Reservoir Cap with Gasket |
421990 |
