Genuine OEM Grasshopper® Mower Parts Diagrams

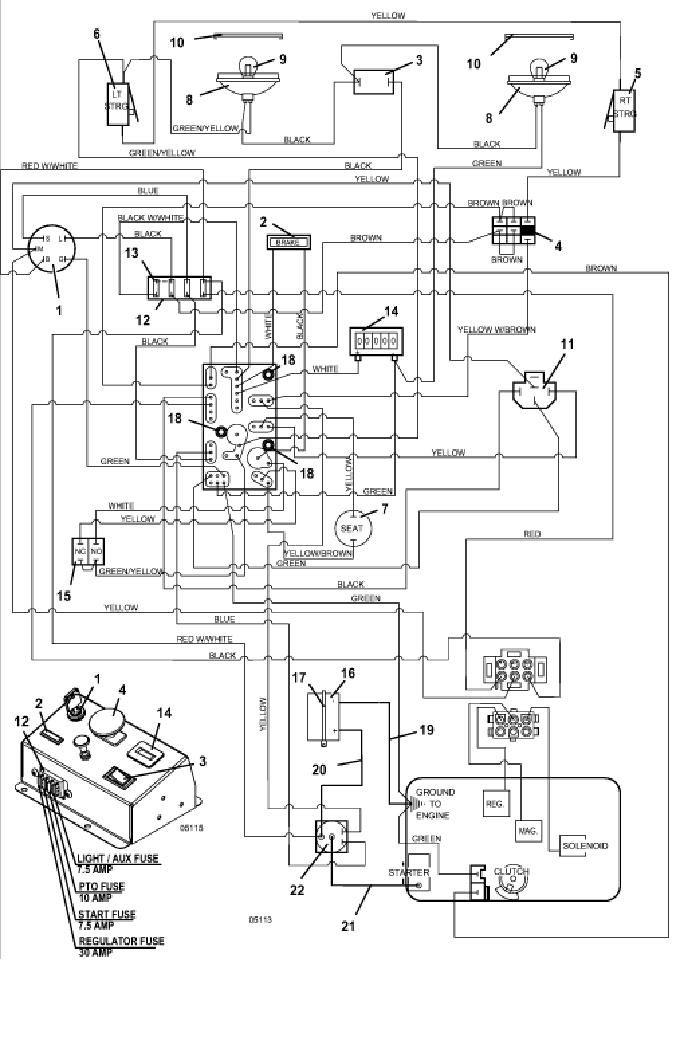

226V • Electrical Wiring & Lights
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push/Pull Switch |
183925 |
5 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
6 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
7 |
Seat Switch |
183870 |
8 |
Flood Worklamp |
182253 |
9 |
Light Bulb for Headlight |
182005 |
10 |
Snap Mount Worklamp Bezel |
182251 |
11 |
12V DC Relay with Mount |
184271 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
12 |
Fuse Block |
181720 |
- |
Fuse ID Decal |
162320 |
- |
Fuse Block Cover |
181721 |
13 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 Amp Auto ATC Fuse |
181460 |
- |
10 Amp Auto ATC Fuse |
181462 |
14 |
Snap In Hour Meter |
141551 |
15 |
Brake Interlock Switch |
183894 |
16 |
12 Volt Wet Battery |
180125 |
- |
12 Volt Dry Battery |
180126 |
- |
M2 Battery Box |
723230 |
17 |
Battery Hold Down Strap |
604785 |
18 |
PC Board Support Spacer |
423690 |
19 |
30" Black Battery Cable |
180290 |
21 |
24" Red Battery Cable |
180322 |
- |
Alternator Terminal Red Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
21 |
20" Red Battery Cable |
180319 |
22 |
4-Post Solenid Switch Relay |
184251 |
23 |
Console Decal |
161121 |
24 |
200V Wiring Assembly |
605915 |
return to 226V index
