Genuine OEM Grasshopper® Mower Parts Diagrams

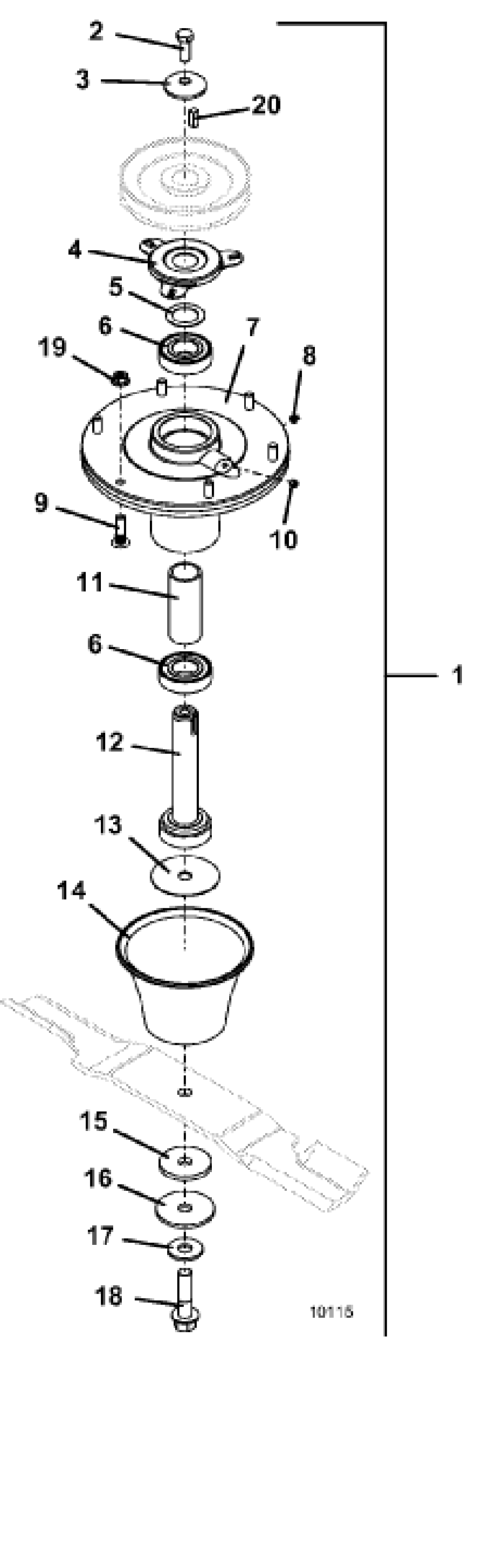

226V • Blade Spindle Assembly M200V-48/52/61
2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Blade Spindle Assembly- left, right, & middle (includes items 2-15) |
623750 |
2 |
Hex Bolt |
243331 |
3 |
Cupped Washer |
257041 |
4 |
Bearing Shield |
721167 |
5 |
Washer |
257106 |
6 |
25mm 2 Reg. Seal Ball Bearing |
110081 |
7 |
Aluminum Spindle Housing Assembly (includes items 8 & 9) |
604413 |
8 |
Relief Plug |
280705 |
9 |
Round Head Ribbed Neck Bolt |
247141 |
10 |
Set Screw |
259305 |
11 |
Deep Spindle Bearing Spacer |
903643 |
12 |
5.75 Spindle Shaft Assembly |
604775 |
13 |
Washer |
772061 |
14 |
Deflector Cone |
423680 |
15 |
Fiber Washer |
421200 |
16 |
Washer |
257061 |
17 |
Hardened Blade Spindle Washer |
257057 |
18 |
Grade 8 Flange Hex Bolt |
243583 |
19 |
Whiz Nut |
253035 |
20 |
Square Key |
281580 |
