Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

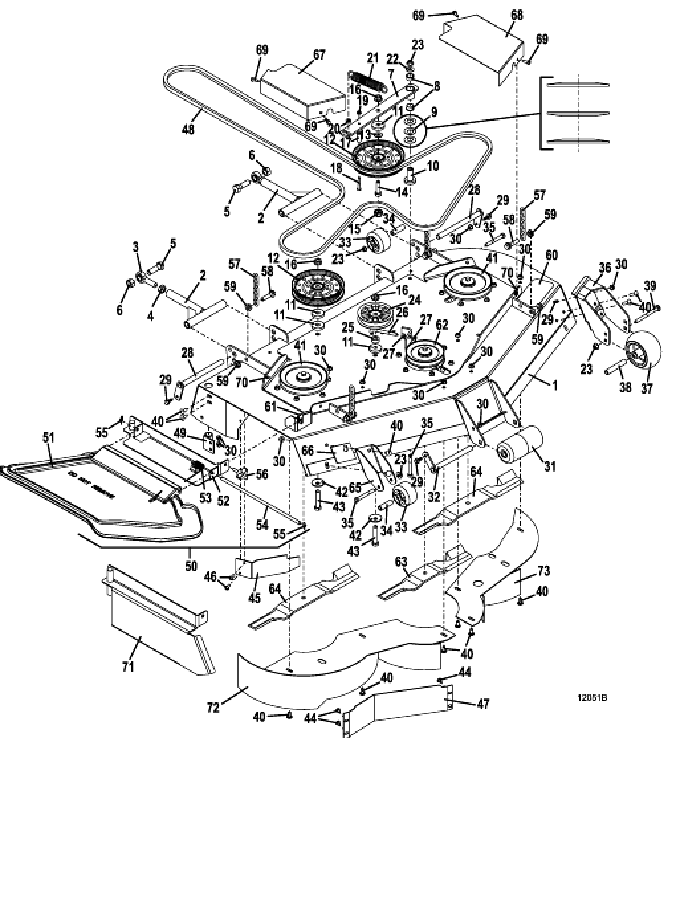

226V • Deck Assembly- M200V/48"

2015

48 inch deck assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1/48-D Deck

645155

2

200V/48 Radius Arm Assembly

604669

3

Rod End

265665

4

Nut

254493

5

Hex Bolt

243805

6

Lock Nut

253970

7

200V Deck Idler Arm Assembly

824468

8

Oilite Bearing

121756

9

Spring Washer

257319

10

Pedestal Bearing

121651

11

Washer

257160

12

Idler

393250

13

Washer

257062

14

Hex Bolt

243575

15

Idler Arm Stabilizer Cap

423670

16

Spiral Flange Lock Nut

253067

17

Guide Tube

784057

18

Hex Bolt

243038

19

Whiz Nut

253025

20

Nylon Bearing

422520

21

Extension Spring

283848

22

Washer

257040

23

Whiz Nut

253043

24

Idler

393225

25

Spacer

902313

26

Idler Adjustment J Bolt

730391

27

Nut

254450

28

9772 Radius Arm Pin

644636

29

Hex Flange Whiz Bolt

253192

30

Whiz Nut

253035

31

Center 2-Piece Roller Assembly

603725

32

Roller Lock Pin

644512

33

Roller

426122

34

Roller Mount Spacer

902284

35

Hex Bolt

243365

36

left Anti-Scalp Roller Mount

645579

37

Anti-Scalp Center Hub Wheel

484230

38

Bearing Tube

942137

39

Carriage Bolt

247310

40

Carriage Bolt

247130

41

Big Split Sheave

415902

42

Washer

257059

43

Hex Bolt

243590

44

Truss Whiz Bolt

253176

45

Discharge Deflect Shroud

729686

46

Truss Whiz Bolt

253177

47

M1/3452 Aux Front Shroud

724588

48

Belt

382093

49

Vac Housing Pivot Mount

643632

50

Flex Discharge Shield Assembly

604317

51

Flex Discharge Shield

422042

52

Discharge Shield Mount

644570

53

Torsion Spring

284406

54

Pin for Flex Discharge Shield

780650

55

Cotter Ring

260608

56

3-Prong Head Deck Stud (Knob)

252821

57

Lift Chain

820320

58

GR 8 Hex Bolt

243458

59

Whiz Nut

253058

60

Step Tread

420901

61

Speed Nut

254448

62

Sheave

415870

63

15" High Lift Blade

320234

-

15" Med Lift Blade

320231

-

15" Contour Blade

320233

-

15" Hi-Low Blade

320235

-

15" Extreme High Lift Blade

320248

64

18" High Lift Notch Blade

320239

-

18" Med Lift Blade

320236

-

18" Contour Blade

320238

-

18" High-Low Mulch Blade

320240

-

18" Extreme High Lift Blade

320241

64

18" Laser Edge Hi Lift Notch Blade

320317

-

18" Shredder Blade

320321

65

M1/M248 Rt Formed Roller Mount

754203

66

Roller Spacer

776231

67

M1/48-D Rt Belt Shield

723507

68

M1/48-D Lt Belt Shield

723508

69

Whiz Hex Bolt

253175

70

Speed Nut

254431

71

3452/61/72 Mulch End Cap

644058

72

M1/48-D Rt Mulch Plate

645600

73

M1/48-D Lt Mulch Plate

645601
