Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

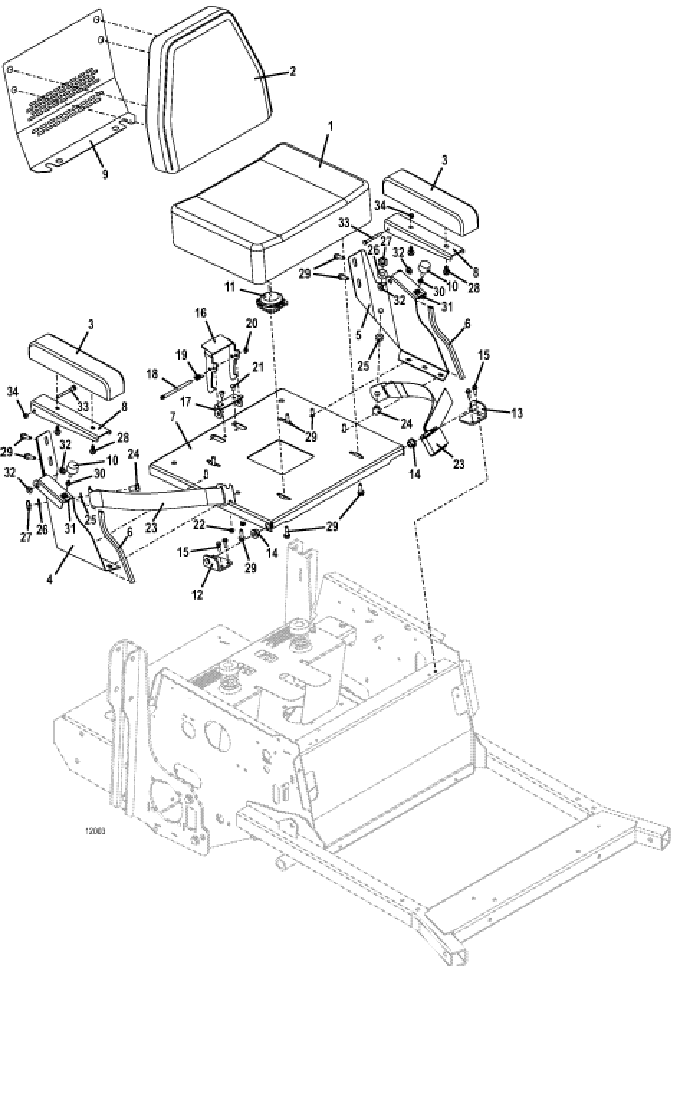

226v • Seat Assembly

2015

seat assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cordura Seat Cushion

321518

2

Cordura Back Cushion

321519

3

Cordura Contoured Armrest

321523

4

Rt Seat Side Folding Armrest

723435

5

Lt Seat Side Folding Armrest

723436

6

Seat Edge Trim

822630

7

200V Seat Pan

643898

8

Folding Armrest

754288

9

Raised Backrest Seat Rein

722884

10

Bumper w/Stud

424056

11

Twist-In Seat Switch

183871

12

Seat Pivot Bracket

644402

13

Seat Pivot Bracket

644401

14

Sleeve Bearing with Flange

422565

15

Hex Whiz Bolt

253175

16

200V Seat Latch

724930

17

200V Seat Latch Bracket

724929

18

Seat Latch Pivot Pin

730229

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Whiz Truss Bolt

253176

22

Whiz Nut

253025

23

Non-retractable Seat Belt

324200

24

Hex Bolt

243551

25

Washer

257063

26

Washer

257062

27

Nylon Insert Nut

253470

28

Flanged Hex Whiz Bolt

253191

29

Flanged Hex Whiz Bolt

253193

30

Bumper Nut Cap

833542

31

Speed Nut

830325

32

Step Bushing

422508

33

Hex Bolt

243050

34

Nut w/Nylon Insert

253440
