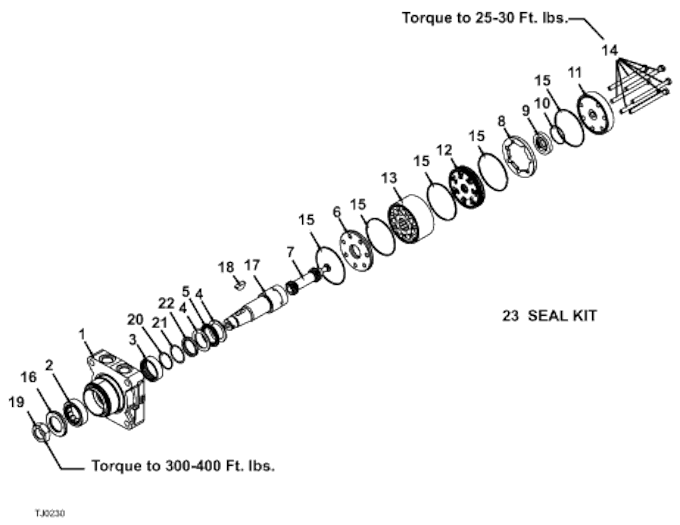

Item # |
Description |
Part Number |
1 |
Housing Assembly - NOT AVAILABLE |
000000 |
2 |
Outer Bearing |
130370 |
3 |
Inner Bearing |
130337 |
4 |
Thrust Washer |
130349 |
5 |
Thrust Bearing |
130350 |
6 |
Wear Plate |
130331 |
7 |
Drive Link |
130319 |
8 |
Commutator Ring - NOT AVAILABLE |
000000 |
9 |
Commutator - NOT AVAILABLE |
000000 |
10 |
Commutator Seal |
130312 |
11 |
End Cover - NOT AVAILABLE |
000000 |
12 |
Manifold - NOT AVAILABLE |
000000 |
13 |
Rotor Assembly |
130377 |
14 |
Special Bolt - NOT AVAILABLE |
000000 |
15 |
Section Seal Ring |
130390 |
16 |
Dirt & Water Seal |
130315 |
17 |
Coupling Shaft |
130309 |
18 |
Key |
281860 |
19 |
Nut |
254522 |
20 |
Backup Ring |
130306 |
21 |
Backup Washer |
130305 |
22 |
Shaft Seal |
130338 |
23 |
Seal Kit |
130389 |
