Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

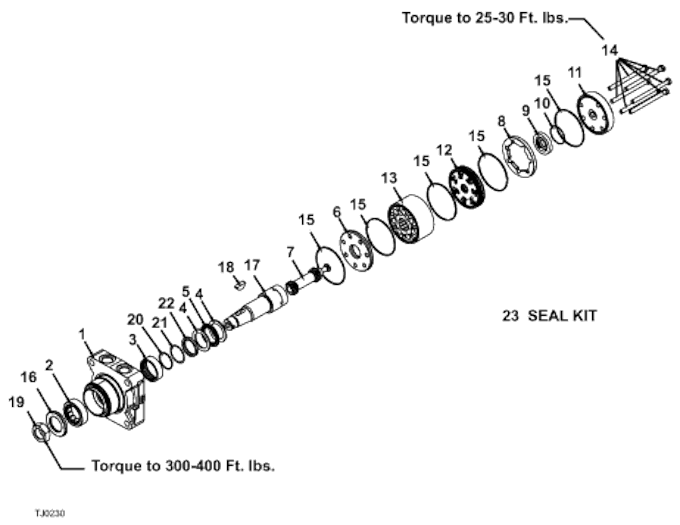

226V • Wheel Motor Assembly

2017

Wheel Motor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 226V Index Return to Top

Item #

Description

Part Number

1

Housing Assembly - NOT AVAILABLE

000000

2

Outer Bearing

130370

3

Inner Bearing

130337

4

Thrust Washer

130349

5

Thrust Bearing

130350

6

Wear Plate

130331

7

Drive Link

130319

8

Commutator Ring - NOT AVAILABLE

000000

9

Commutator - NOT AVAILABLE

000000

10

Commutator Seal

130312

11

End Cover - NOT AVAILABLE

000000

12

Manifold - NOT AVAILABLE

000000

13

Rotor Assembly

130377

14

Special Bolt - NOT AVAILABLE

000000

15

Section Seal Ring

130390

16

Dirt & Water Seal

130315

17

Coupling Shaft

130309

18

Key

281860

19

Nut

254522

20

Backup Ring

130306

21

Backup Washer

130305

22

Shaft Seal

130338

23

Seal Kit

130389
