Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

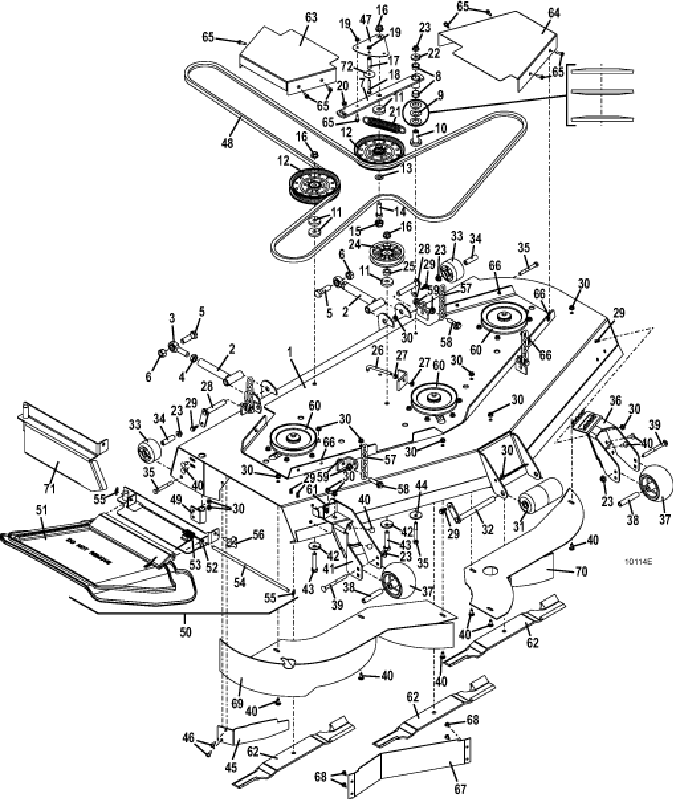

226V • Deck Assembly M200V 61"

2018

61 inch deck assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200V/61 Deck

645157

2

200V Radius Arm Assembly

604678

3

Rod End

265665

4

Nut

254493

5

Hex Bolt

243810

6

Lock Nut

253970

7

200V Deck Idler Arm Assembly

824468

8

Oilite Bearing

121756

9

Spring Washer

257319

10

Pedestal Bearing

121651

11

Washer

257160

12

Idler

393250

13

Washer

257062

14

Hex Bolt

243575

15

Idler Arm Stabilizer Cap

423670

16

Spiral Flange Lock Nut

253067

17

Guide Tube

784051

18

Hex Bolt

243040

19

Whiz Nut

253025

20

Nylon Bearing

422520

21

Extension Spring

283848

22

Washer

774020

23

Whiz Nut

253043

24

Idler

393225

25

Spacer

902313

26

Idler Adjustment J Bolt

730391

27

Nut

254450

28

200V Radius Arm Lock Pin

644880

29

Hex Flange Whiz Bolt

253192

30

Whiz Nut

253035

31

Center 2-Piece Roller Assembly

603725

32

Roller Lock Pin

644512

33

Roller

426122

34

Roller Mount Spacer

902284

35

Hex Bolt

243365

36

Lt Tread Anti-Scalp Roller Mount

645589

37

Anti-Scalp Center Hub Wheel

484230

38

Bearing Tube

942137

39

Carriage Bolt

247310

40

Carriage Bolt

247130

41

3472 right Anti-Scalp Roller Mount

645576

42

Washer

257059

43

Hex Bolt

243590

44

Cupped Washer

257041

45

Deflect Disharge Shroud

729687

46

Truss Whiz Bolt

253177

47

Idler Guide Bracket

723012

48

Belt

382101

49

Vac Housing Pivot Mount

643632

50

Flex Discharge Shield Assembly

604317

51

Flex Discharge Shield

422042

52

Discharge Shield Mount

644570

53

Torsion Spring

284406

54

Flex Discharge Shield Pin

780650

55

Cotter Ring

260608

56

3-Prong Head Deck Stud (Knob)

252821

57

Lift Chain

820320

58

GR 8 Hex Bolt

243458

59

Whiz Nut

253058

60

Sheave

415892

61

Speed Nut

254448

62

21" High Lift Notch Blade

320245

-

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" Hi-Low Mulch Blade

320247

62

21" Laser Edge High Lift Notch Blade

320318

-

21" Shredder Blade

320322

63

200V/61 right Belt Shield

722952

64

200V/61 left Belt Shield

722953

65

Hex Whiz Bolt

253175

66

Speed Nut

254431

67

M1/3461 Auxiliary Front Shroud

724589

68

Truss Whiz Bolt

253176

69

M1 61 Rt Mulch Plate

644611

70

M1 61 Lt Mulch Plate

644610

71

3452/61/72 Mulch Plate End Cap

644058

72

Washer

257024
