Genuine OEM Grasshopper® Mower Parts Diagrams

226V-G4 • Blade Spindle Assembly

2018

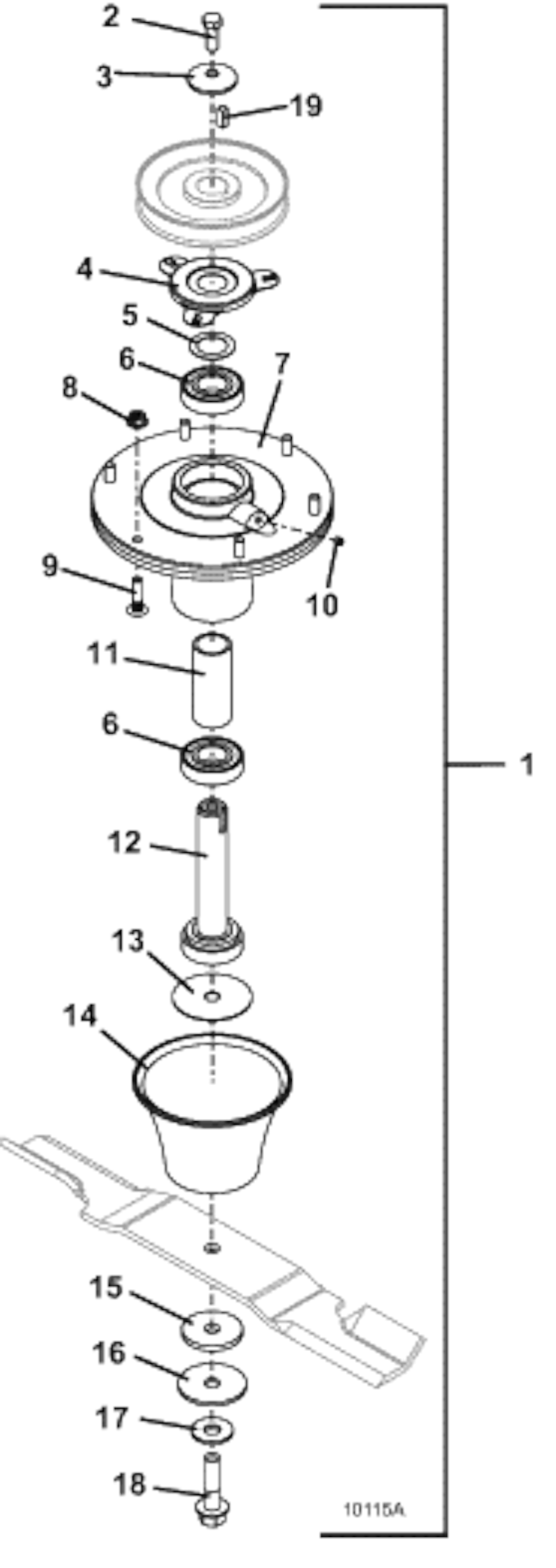

Blade Spindle Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left/Right/Center Spindle Assembly
(Does NOT include sheaves, sheave spacers, and square key)

623750

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Bearing Shield

721167

5

Washer

257106

6

Ball Bearing

110081

7

Aluminum Spindle Housing Assembly

604413

8

Whiz Nut

253035

9

Ribbed Neck Round Head Bold

247141

10

Set Screw

259305

11

Deep Spindle Bearing Spacer

903643

12

Spindle Shaft Assembly

604775

13

Washer

257055

14

Deflector Cone

423680

15

Fiber Washer

421200

16

Washer

257061

17

Hardened Washer

257057

18

Grade 8 Flanged Hex Bolt

243583

19

Square Key

281580

Return to 226V-G4 Index Return to Top
