Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

226V-G4 • Brake Assembly & Expansion Tanks

2018

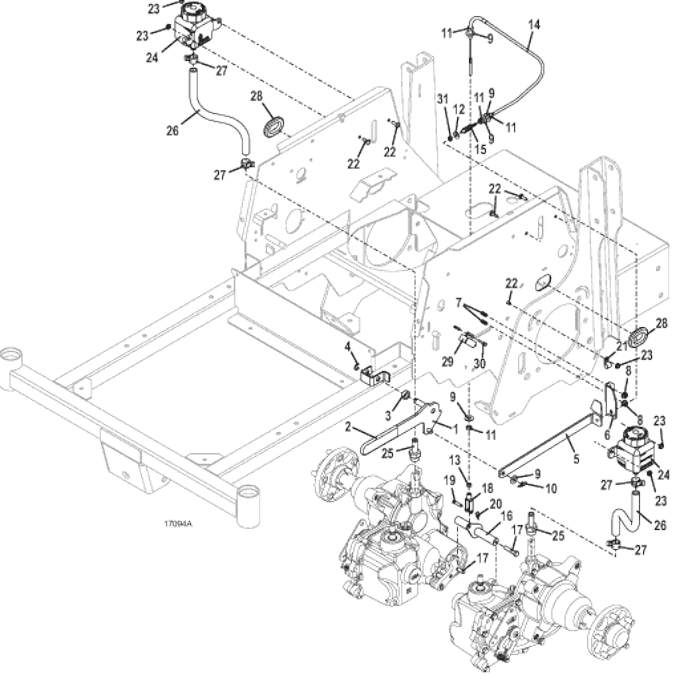

Brake Assembly and Expansion Tanks Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Brake Lever

645103

2

Handle Grip

422155

3

Spacer

902314

4

External Retainer

263500

5

Brake Cable Strap

645801

6

Brake Cable Bracket

724353

7

Flanged Hex Whiz Bolt

253192

8

Whiz Nut

253035

9

Washer

257030

10

Cotter Ring

260608

11

Nut

254441

12

Washer

257020

13

Nut

254434

14

Brake Cable Assembly

323601

15

Compression Spring

283311

16

Brake Rod

645117

17

Hex Bolt

243215

18

Clevis Yoke

265530

19

Clevis Pin

261236

20

Cotter Ring

260606

21

.5" Loom Clamp

180605

22

Truss Whiz Bolt

253176

23

Whiz Nut

253025

24

Expansion Tank

421982

25

Adapter

360083

26

Hydraulic Hose

821811

27

Spring Hose Clamp

280266

28

Grommet

424290

29

Interlock Plunger Switch

183894

30

Machine Screw

250258

-

Nut

254421

31

Nylon Insert Nut

253441

Return to 226V-G4 Index Return to Top
