Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

226V-G4 • Console

2018

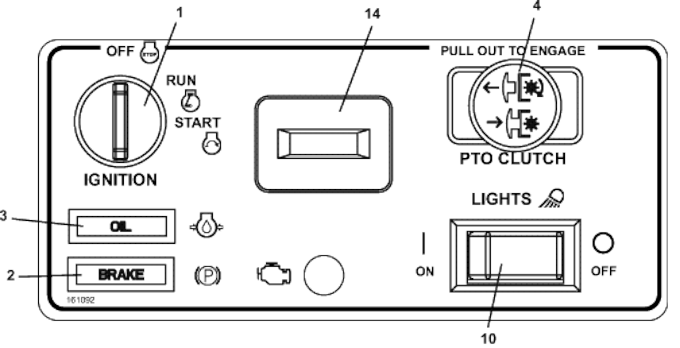

Console Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Indak Ignition Key with Cover

101101

-

.250 Terminal Pushon Type 1

184578

-

.250 Terminal Pushon

184580

-

5-Way Connector Type 9

184925

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

3

Oil Pressure Switch

183770

4

Push/Pull Switch

183925

-

9-Way Connector

184942

10

Rocker Switch

184179

14

Snap-In Hour Meter

141551

15

Console Decal

161092

Return to 226V-G4 Index Return to Top
