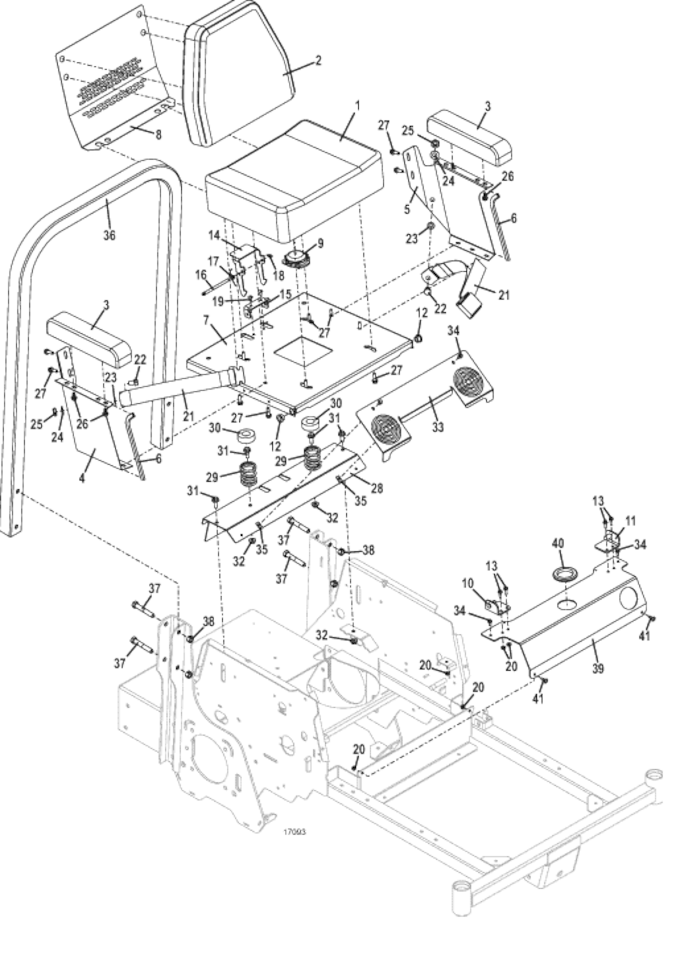

1

Seat Cushion - Combo

321529

2

Back Cushion - Combo w/Logo

321530

3

Cordura Covered Armrest

321523

4

Right Raised Backrest - Seat Side

723433

5

Left Raised Backrest - Seat Side

723434

6

Seat Edge Trim

822630

7

200V Seat Pan

643898

8

Seat Reinforcement - Raised Backrest

722884

9

Twist-In Seat Switch

183871

10

Seat Pivot Bracket

644401

11

Seat Pivot Bracket

644402

12

Sleeved Bearing with Flange

422565

13

Flanged Hex Whiz Bolt

253192

14

200V Seat Latch

724930

15

200V Seat Latch Mount Bracket

724929

16

200V Seat Latch Pivot Pin

730229

17

Torsion Spring

284408

18

Cotter Ring

260606

19

Truss Whiz Bolt

253176

20

Whiz Nut

253025

21

Non-Retractable Seat Belt

324200

22

Hex Bolt

243551

23

Washer

257063

24

Washer

257062

25

Nylon Insert Nut

253470

26

Flanged Hex Whiz Bolt

253191

27

Flanged Hex Whiz Bolt

253193

28

200VG4 Seat Crossmember

729767

29

Compression Spring

283516

30

Seat Spring Cap

422127

31

Flanged Whiz Bolt

253203

32

Whiz Nut

253043

33

200V-G4 Fan Shield

723108

34

Hex Whiz Bolt

253173

35

Speed Nut

254431

36

ROPS Tube

324112

37

Hex Bolt

243600

38

Lock Nut

253930

39

Front Panel

729768

40

Grommet

424294

41

Truss Whiz Bolt

253178
