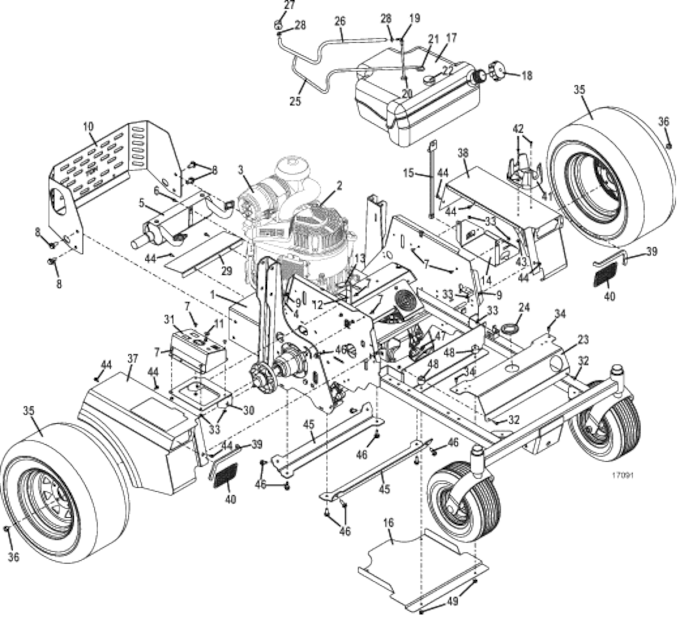

1

52” Lower Frame

645383

-

61” Lower Frame

645384

2

26HP Vanguard Engine

100155

3

90 Degree Nelson Air Cleaner

100207

-

Air Cleaner Cover Clip

100197

-

Air Cleaner End Cap

100199

-

Air Hood

100203

-

Dust Ejector

100936

-

Outer HD Air Filter

100937

-

Inner HD Air Filter

100207

4

Briggs & Stratton Oil Filter

100803

5

Briggs & Stratton Verical Engine Muffler

101197

-

Briggs & Stratton Verical Engine Exhaust Gasket

101043

6

Hex Bolt

243016

7

Truss Whiz Bolt

253176

8

Hex Bolt

243565

-

Whiz Nut

253066

9

Speed Nut

254431

10

Rear Guard Shield

729745

11

Mechanical Choke

142250

12

Throttle Assembly

603854

-

Control Cable Assembly

323643

-

Heavy Duty Throttle Stop

722736

13

Handle Grip

422155

14

126 Battery Mount

723062

15

Battery Hold Down Strap

604785

16

200VG4 Tank Shield

722931

17

M2 Gas Tank Assembly

605805

18

Fuel Cap with Sealed Tether

100212

19

Fuel Tube

363919

20

Grommet

424294

21

Fuel Tank Valve Kit

606830

22

In-tank Fuel Guage

141139

-

Grommet

424276

23

Front Panel

729768

24

Grommet

424294

25

Fuel Vapor Hose

821746

26

Fuel Hose

821769

27

Briggs & Stratton In-Line Fuel Filter

366560

28

Hose Spring Clamp

280260

29

Heat Shield

751043

30

200V Console Bracket

644411

31

200V Console with Decal

693123

32

Truss Whiz Bolt

253178

33

Whiz Nut

253025

34

Truss Whiz Bolt

253177

35

Wheel & Tire - Turf

483960

-

Turf Tire

482485

-

Wheel

483445

36

Lug Nut

254472

37

Right Fender with Decals

693206

38

Left Fender with Decals

693207

39

Trim

822632

40

Work Lamp Hole Plug

422079

41

Cup Holder

150225

42

Cap Screw

259030

43

Nut

254436

44

Hex Whiz Bolt

253173

45

200VG4 Skid Plate

725109

46

Flenged Whiz Bolt

253203

47

Whiz Nut

253043

48

Vibration Isolator

424074

49

Whiz Nut

253035
