Genuine OEM Grasshopper® Mower Parts Diagrams

227V-EFI • Tractor Assembly

2017

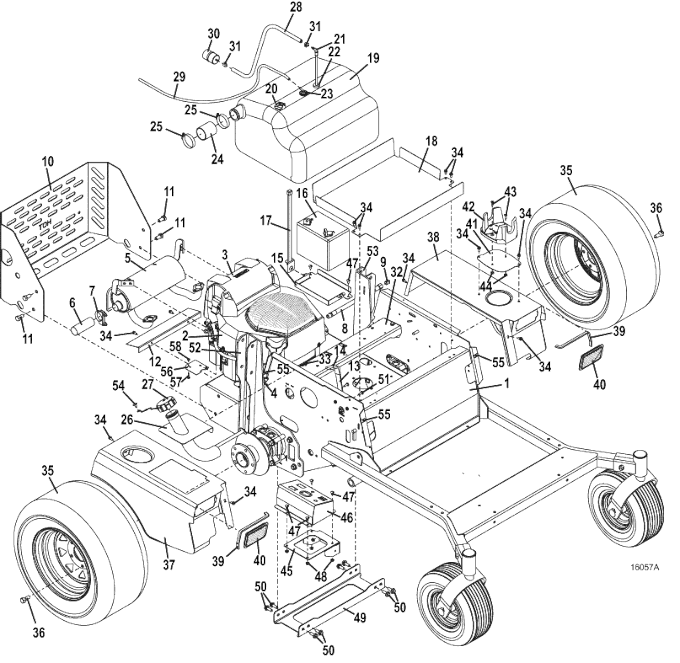

Tractor Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200V 48/52 Frame

645201

-

200V 61 Frame

645202

2

27HP Kohler EFI Vertical Engine

100083

-

Self Tapping Hex Bolt

243332

3

Kohler Confidant Air Filter

100917

-

Kohler Confidant Air Pre-Filter

100916

4

Kohler Oil Filter

100802

5

27HP EFI Vertical Kohler Muffler

101222

-

Kohler Exhaust Gasket

101041

-

Heat Shield for Muffler

101214

6

M2 Exhaust Pipe

942400

7

Exhaust Clamp

101356

8

Engine Oil Drain Hose Assembly

424474

9

Metal Pipe Plug

365515

10

Rear Shield

725901

11

Hex Bolt

243560

12

120 Heat Shield

722974

13

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

14

Handle Grip

422150

15

200V Battery Tray

723038

16

12 Volt Wet Battery

180125

17

Battery Hold Down Strap

604785

18

200V Tank Shield

722926

19

200V Tank Assembly

605798

20

Fuel Sender

141235

-

Electric Fuel Sender Grommet

424274

-

Grommet

424275

21

Fuel Tube

363925

22

Grommet

101875

23

Fuel Tank Valve Kit

606830

24

Fuel Tank Filler Hose

422027

25

Screw Type Hose Clamp

280305

26

200 Fuel Filler

644886

27

Sealed Tether Fuel Cap Kit

606360

28

Fuel Hose

821767

29

Fuel Vapor Hose

821755

30

Kohler Fuel Filter

101001

31

Spring Hose Clamp

280260

32

200V Crossmember Seat

729577

33

Hex Whiz Bolt

253175

34

Hex Whiz Bolt

253173

35

Wheel & Turf Tire

483960

-

Turf Tire 23x10.5x12

482485

-

Turf Tire 24x12x12

482486

-

Wheel w/61"/72" Deck

483440

-

Wheel w/52" Deck

483955

-

Wheel & Turf Tire

483965

36

Lug Nut

248565

37

Rt 200V Fender

644884

38

Lt 200V Fender

644885

39

Fender Edge Trim

822631

40

Work Lamp Hole Plug

422079

41

M2 Reservoir Access Panel

722804

42

Cup Holder

150225

43

Cap Screw

259030

44

Nut

254436

45

100 Console Bracket

644410

46

200V EFI Console with Decal

693124

47

Truss Whiz Bolt

253176

48

Whiz Nut

253025

49

200V Wheel Motor Mount/Crossmember

724924

50

Flange Whiz Bolt

253203

-

Whiz Nut

253043

51

Truss Whiz Bolt

253177

52

Rt 200V Wheel Motor & ROPS Mount

645206

53

Lt 200V Wheel Motor & ROPS Mount

645207

54

.250 Plastic Push Stud

246975

55

Speed Nut

254431

56

Cable Mount Heat Shield

771015

57

Hex Whiz Bolt

253167

58

Whiz Nut

253020
