227V-EFI • Wheel Motor & Brake Assembly

2017

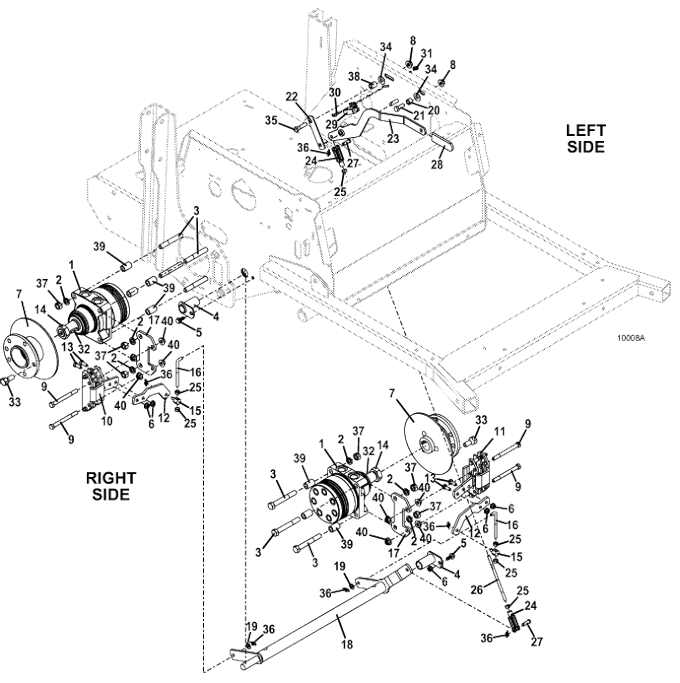

Wheel Motor and Brake Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub for 61" Model (includes items 2 - 4)

603603

2

Lock Washer

257432

3

Square Head Bolt

243622

4

Bolt-In w/a Brake Tube

644077

5

Hex Flange Whiz Bolt

253192

6

Whiz Nut

253035

7

Hub & Rotor Assembly

604436

8

Whiz Nut

253043

9

Hex Bolt

243386

10

M1 700/900 Clockwise Brake Caliper Assembly

481141

-

Brake Pad Kit

481160

11

M1 700/900 Counter Clockwise Brake Caliper Assembly

481140

-

Brake Pad Kit

481160

12

200V Brake Caliper Arm

776136

13

Hex Bolt

243195

14

Nut

254522

15

.312 Brake Linkage Pin

880926

16

M1 Brake Linkage Rod

730158

17

M1 930D2 / 932G2 Brake Mount

776123

18

200V Brake Tube

643966

19

Washer

257032

20

Spacer

902280

21

Hex Bolt

243330

22

M1 Pin Reinforcement

774145

23

Brake w/a Lever

644447

24

Clevis Yoke

265537

25

Nut

254441

26

Brake Linkage Rod

780157

27

Clevis Pin

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut

253020

32

Woodruff Key

281860

33

Lug Nut

248565

34

Washer

257040

35

Hex Bolt

243340

36

Cotter Ring

260606

37

Nut

254470

38

Spacer

902283

39

200V Wheel Motor Spacer

942184

40

Flange Nut

253044
