227V-EFI • Reservoir & Hose Assembly

2018

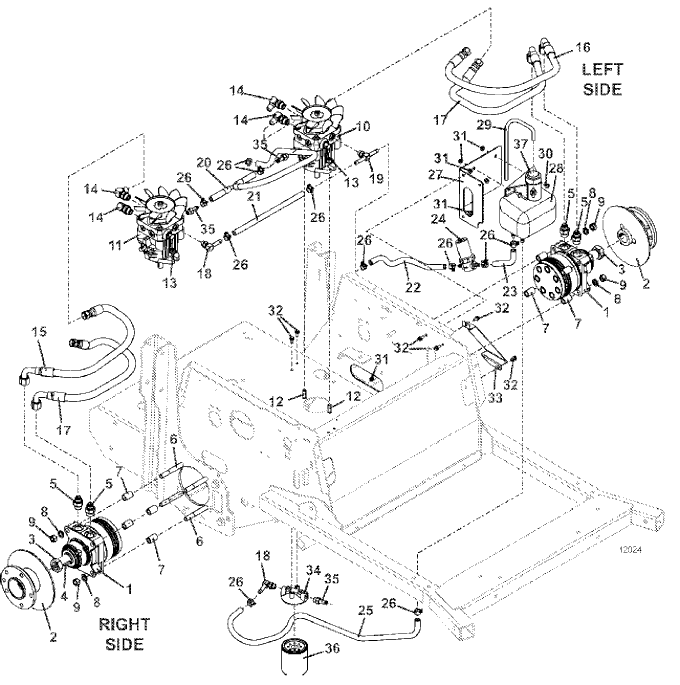

Reservoir and Hose Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor w/Hub(includes items 2 - 4)

603603

2

Hub & Rotor Assembly

604436

3

Lock Nut

253992

4

Woodruff Key

281845

5

O Ring Adapter

360063

6

Square Head Bolt

243622

7

Wheel Motor Spacer for 61" Model

942184

8

Lock Washer

257432

9

Nut

254470

10

Lt Hydro Pump w/7" Fan

391464

11

Rt Hydro Pump w/7" Fan

391465

12

Hex Bolt

243335

13

Whiz Nut

253043

14

O-Ring Adapter

360061

15

Hose Assembly

424387

16

Hose Assembly

424388

17

Hose Assembly

424389

18

Adapter

360056

19

Adjustable -6 MB -6 BD Stem Tee Adapter

360047

20

Hose Assembly

424358

21

Hydraulic Hose

821782

22

Hydraulic Hose

821783

23

Hydraulic Hose

821774

24

In-Line Strainer

366554

25

Hydraulic Hose

821809

26

Spring Hose Clamp

280264

27

200V Oil Reservoir Mount

724949

28

200V Oil Reservoir

822334

29

Clear Vent Hose

821724

30

Truss Whiz Bolt

253176

31

Whiz Nut

253025

32

Hex Whiz Bolt

253173

33

200V Oil Hoses Cover

722925

34

M1 Series Filter Base

101024

35

O Ring Boss Fitting

363864

36

High-Efficiency Transaxle Oil Filter

100855

37

Reservoir Cap with Gasket

421990

Return to 227V-EFI Index TOP
