Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

227V-EFI • ROPS & Steering Assembly

2018

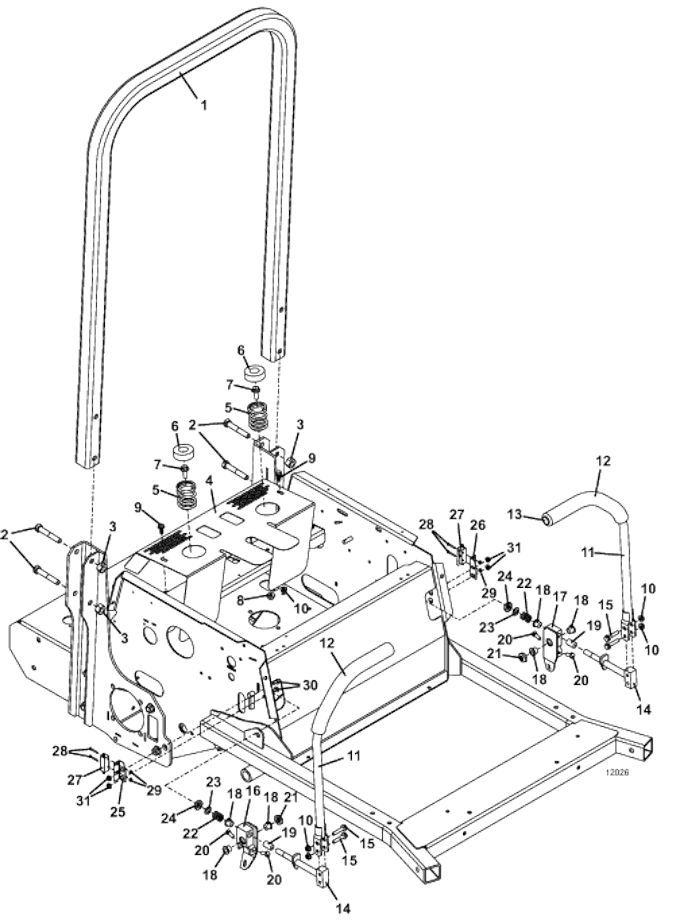

ROPS and Steering Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200V ROPS Tube

324108

2

Hex Bolt

243600

3

Lock Nut

253930

4

200V Fan Shield

722924

5

Compression Spring

283516

6

Seat Spring Cap

422127

7

Flange Whiz Bolt

253203

8

Whiz Nut

253043

9

Hex Whiz Flange Bolt

253192

10

Whiz Nut

253035

11

200V Standard Steering Lever Assembly

605741

12

Handle Grip

422179

13

.75 ID Vinyl Cap

422095

14

Adjustable Steering Lever Mount

643926

15

Whiz Hex Flange Bolt

253195

16

Rt Steering Pivot w/Stop & Bearings

604713

17

Lt Steering Pivot w/Stop & Bearings

604714

18

Sleeve Bearing w/Flange

422556

19

Sleeve Bearing

422557

20

Hex Bolt

243197

21

Nylon Insert Nut

253470

22

Compression Spring

283324

23

Washer

257063

24

Nylon Insert Nut

253470

25

Rt Steering Switch Mount

720160

26

Lt Steering Switch Mount

720161

27

Lever Switch

183860

28

Machine Screw

250318

29

Nut

254400

30

Truss Whiz Bolt

253176

31

Whiz Nut

253025

Return to 227V-EFI Index TOP
