227V-EFI • Wheel Motor Assembly

2018

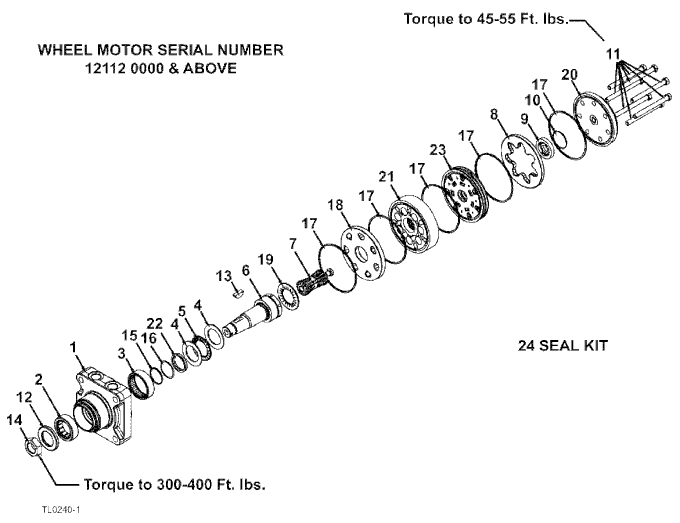

Wheel Motor Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Assembly - NOT AVAILABLE

000000

2

Outer Bearing

130370

3

Inner Bearing

130340

4

Thrust Washer

130345

5

Thrust Bearing

130344

6

T Coupling Shaft

130308

7

T Drive Link

130314

8

Commutator Ring - NOT AVAILABLE

000000

9

Commutator - NOT AVAILABLE

000000

10

Commutator Seal

130312

11

End Cover - NOT AVAILABLE

000000

12

Dirt and Water Seal

130315

13

Woodruff Key

281860

14

Nut

254522

15

Ring Washer

130306

16

Backup Washer

130305

17

Seal Ring

130386

18

Wear Plate

130330

19

Inner Thrust Bearing

130342

20

NOT AVAILABLE

000000

21

T Rotor Set

130378

22

T Inner Seal

130338

23

NOT AVAILABLE

000000

24

T Seal Kit

130387
