Genuine OEM Grasshopper® Mower Parts Diagrams

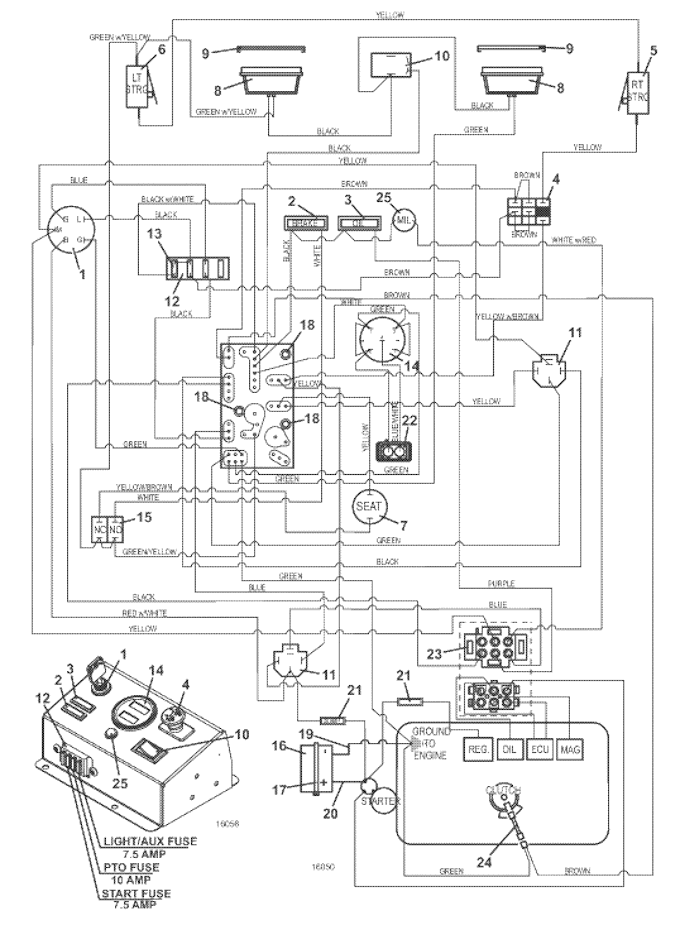

227V-EFI • Wiring Diagram
2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Light Indicator |
182327 |
4 |
Push/Pull Switch |
183925 |
- |
9-Way Connector |
184942 |
5 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
6 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
7 |
Twist-In Seat Switch |
183871 |
8 |
LED Flood Worklamp |
182261 |
9 |
Snap Mount Worklamp Bezel |
182251 |
10 |
Rocker Switch |
184179 |
11 |
12V DC Relay with Mount |
184271 |
12 |
Fuse Block |
181720 |
- |
Fuse ID Decal |
162355 |
- |
Fuse Block Cover |
181721 |
13 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 Amp Auto ATC Fuse |
181460 |
- |
10 Amp Auto ATC Fuse |
181462 |
14 |
Fuel Guage with Hour Meter |
141122 |
15 |
Brake Interlock Switch |
183894 |
16 |
12 Volt Wet Battery |
180125 |
- |
200V Battery Tray |
723038 |
17 |
Battery Hold Down Strap |
604785 |
18 |
PC Board Support Spacer |
423690 |
19 |
20" Black Battery Cable |
180280 |
- |
Whiz Nut |
253035 |
- |
Flanged Hex Whiz Bolt |
253193 |
20 |
16" Red Battery Cable |
180315 |
- |
Alternator Terminal Red Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
21 |
Inline Auto Fuse Holder |
181735 |
21 |
30 Amp Auto ATC Fuse |
181470 |
22 |
2 Terminal Connector |
184907 |
- |
Fuel Sender |
141235 |
23 |
6 Terminal Connector (Amp) |
184911 |
- |
Mate N-Lock Pin |
181768 |
24 |
Pigtail Cable Assembly |
388840 |
25 |
MIL Light Indicator |
182322 |
26 |
Console Decal |
161093 |
26 |
227V-EFI Wiring Assembly |
605922 |
