Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

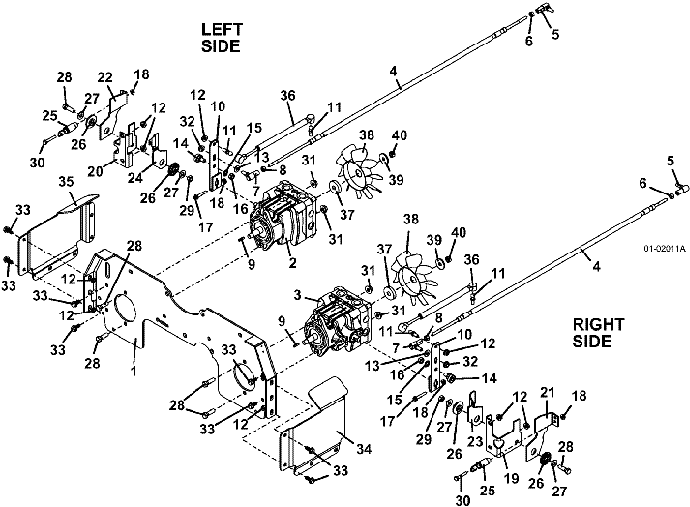

321D • Drive Assembly Continued

2003

Click on diagram to view super-sized image.

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Hydro Pump with Shaft - left

391462

3

Hydro Pump with Shaft - right

391463

4

Steering Linkage Rod

604528

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Square Key

281562

10

Pump Control Arm - right

725338

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

M1 Neutral Return Mount - right

754128

20

M1 Neutral Return Mount -left

754129

21

Neutral Return Arm - front right

729136

22

Neutral Return Arm - front left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Hex Bolt

243035

31

Whiz Nut

253043

32

Whiz Nut

253038

33

Hex Flange Whiz Bolt

253192

34

300 Series Plate Reinforcement - right

754157

35

300 Series Plate Reinforcement - left

754158

36

Damper

285031

37

Fan Mount Hub 10A

885123

38

7" Nylon Fan

320857

39

Washer

774020

40

Nut

254452
