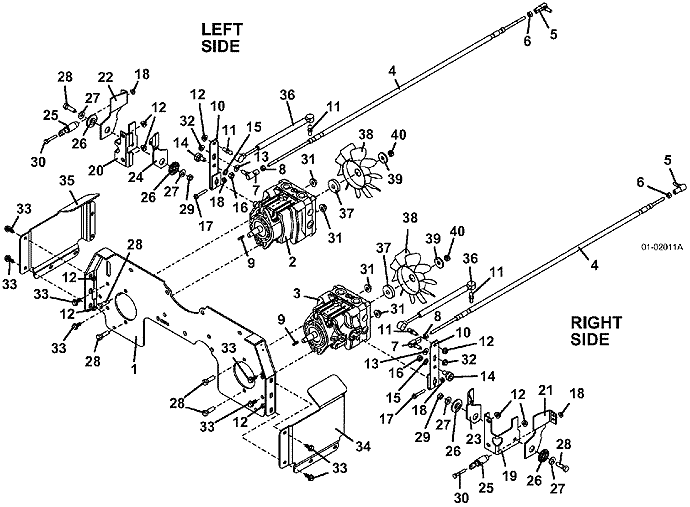

321D • Drive Assembly Continued

2004

Click on diagram to view super-sized image.

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Hydro Pump with Shaft - left

391462

3

Hydro Pump with Shaft - right

391463

4

Steering Linkage Rod

604528

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Square Key

281562

10

Pump Control Arm - right

725338

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

M1 Neutral Return Mount - right

754128

20

M1 Neutral Return Mount -left

754129

21

Neutral Return Arm - front right

729136

22

Neutral Return Arm - front left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Hex Bolt

243035

31

Whiz Nut

253043

32

Whiz Nut

253038

33

Hex Flange Whiz Bolt

253192

34

300 Series right Reinforcement Plate

754157

35

300 Series left Reinforcement Plate

754158

36

Damper

285031

37

Fan Mount Hub 10A

885123

38

7" Nylon Fan

320857

39

Washer

774020

40

Nut

254452
