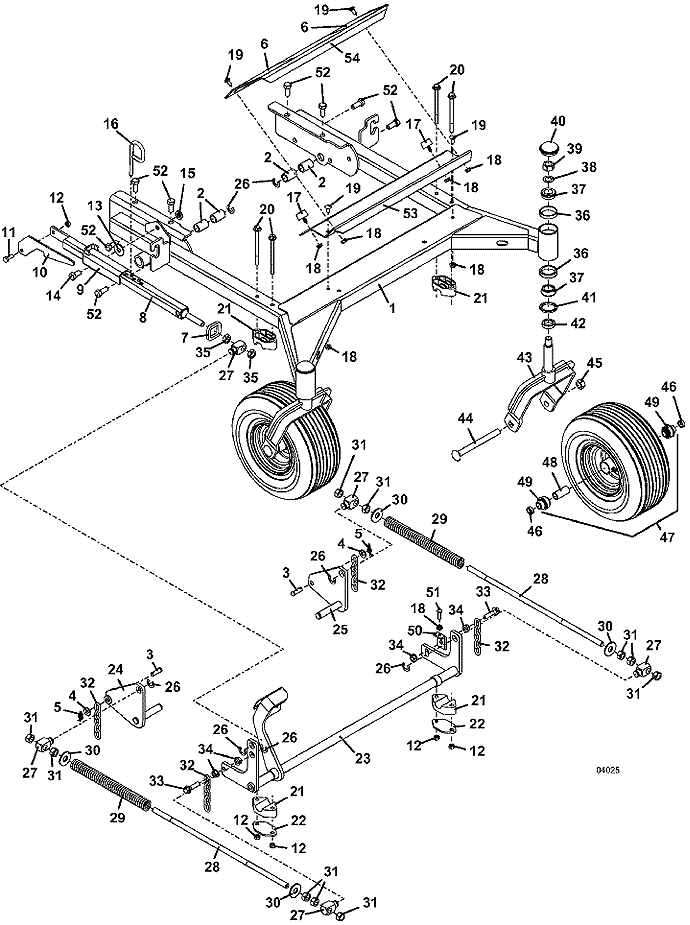

321D • Deck Carrier Assembly - M152

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Carrier (without footrest) - M152

644136

-

M1 Cutting Height Decal

162187

2

Oilite Bearing

121766

3

Clevis Pin

261405

4

Washer

257051

5

Cotter Ring

260612

6

Tread for Foot Rest Extension

420904

7

Height Adjustment Spacer M1

423696

8

Height Adjustment Tube M1

644778

9

Latch Tube Guide

644305

10

Deck Latch

775104

11

Hex Bolt .375-16 x 1

243330

12

Lock Nut .375-16

253890

13

Nylon Washer

821516

14

Hex Bolt .500-13 x 1

243560

15

Nylon Nut Insert

253470

16

Height Adjustment Deck Pin

730434

17

Rubber Bumper

424052

18

Whiz Nut .375-16

253035

19

Carriage Bolt

247130

20

Flange Bolt

253215

21

Bearing Block - M1

423643

22

Lift Bearing Plate

774064

23

Lift Lever - M1 Deck

644524

24

right Rear Deck Rocker - M1

644707

25

left Rear Deck Rocker - M1

644708

26

External Retainer

263529

27

Spring Rod Shaft Mount

882035

28

Spring Shaft

780661

29

Compression Spring

283392

30

Washer

257080

31

Nut .625-11

254490

32

Chain - 5 Links M1

820331

33

Hex Bolt .437-.14 x 1.75 GR 8

243458

34

Whiz Nut .437-14

253058

35

Nut .625-18

254493

36

Bearing Cup

123522

37

Taper Bearing 1.000 ID

122522

38

Washer

257091

39

Lock Nut .750-16

253992

40

Domed Dust Cap

481434

41

Seal

125855

42

Spacer

282615

43

Fork & Lock Nut Assembly

604365

44

Carriage Bolt .625 x 7

247725

45

Lock Nut .625-11

253970

46

Axle Spacer

902422

47

Wheel Assembly with Bearings

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire 6 x 4.5

483306

48

Rear Axle Center Spacer

902429

49

Wheel Ball Bearing - .625 DP

120048

50

Adjusting Strap

732586

51

Hex Bolt

243205

52

Hex Bolt

243565

-

Flange Spiral Lock Nut

253067

53

M1 Foot Rest Extension

774155

54

300/400 Foot Rest Extension

724579

Return to 321D Index Return to Top
