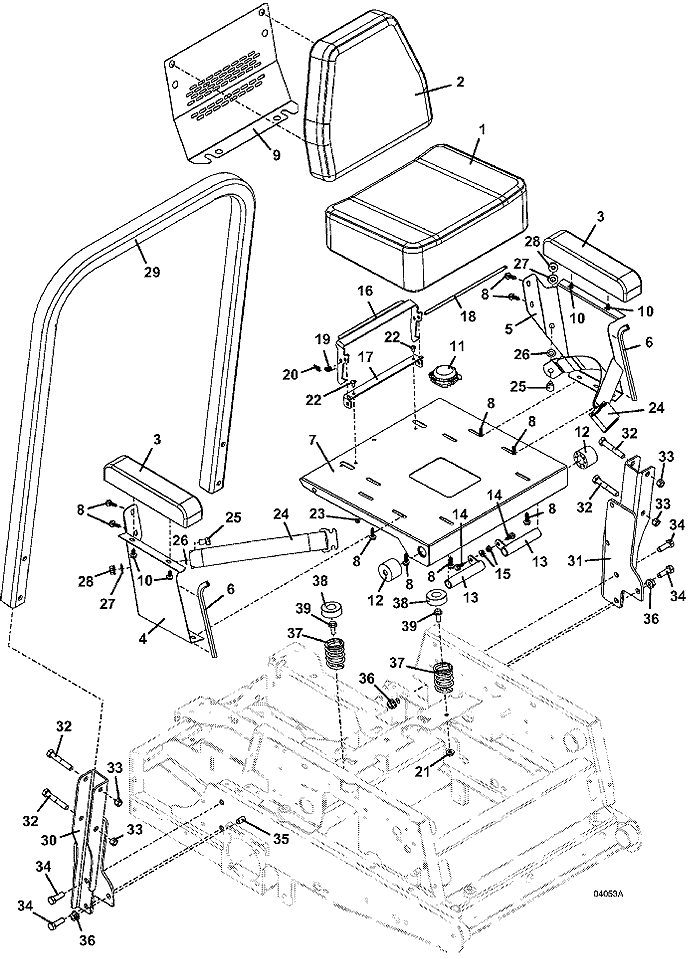

Genuine OEM Grasshopper® Mower Parts Diagrams
321D • Seat & ROPS Assembly
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Seat Cushion - Cordura |
321518 |
2 |
Back Cushion - Cordura |
321519 |
3 |
Contoured Armrest - Cordura |
321523 |
4 |
Extended Armrest Seat Side Member - right |
723386 |
5 |
Extended Armrest Seat Side Member - left |
723387 |
6 |
Seat Edge Trim |
822630 |
7 |
Seat Platform - 300S Dual Latch |
643932 |
8 |
Hex Flange Whiz Bolt .312-18 x 1 |
253193 |
9 |
Seat Reinforcement Panel |
722388 |
10 |
Hex Flange Whiz Bolt .312 |
253191 |
11 |
Twist-in Seat Switch |
183871 |
12 |
Seat Isolator |
424095 |
13 |
Seat Hinge Pin |
644618 |
14 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
15 |
Whiz Nut |
253035 |
16 |
Seat Dual Latch |
754240 |
17 |
Dual Latch Mount Bracket |
754226 |
18 |
Seat Latch Pivot Pin |
730230 |
19 |
Torsion Spring |
284408 |
20 |
Cotter Ring |
260606 |
21 |
Whiz Nut |
253043 |
22 |
Truss Hex Whiz Bolt |
253176 |
23 |
Whiz Nut |
253025 |
24 |
Non-retractable Seat Belt |
324200 |
25 |
Hex Bolt |
243551 |
26 |
Washer |
257063 |
27 |
Washer |
257062 |
28 |
Nylon Insert Nut |
253470 |
29 |
ROPS (Roll-Over Protection Structure) - M1 |
324104 |
30 |
ROPS Mount - right |
643862 |
31 |
ROPS Mount - left |
643863 |
32 |
Hex Bolt |
243600 |
33 |
Lock Nut |
253930 |
34 |
Hex Bolt |
243570 |
35 |
Hex Bolt |
243565 |
36 |
Flange Spiral Lock Nut |
253067 |
37 |
Compression Spring |
283516 |
38 |
Seat Spring Cap |
422127 |
39 |
Flange Whiz Bolt |
253203 |
