Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

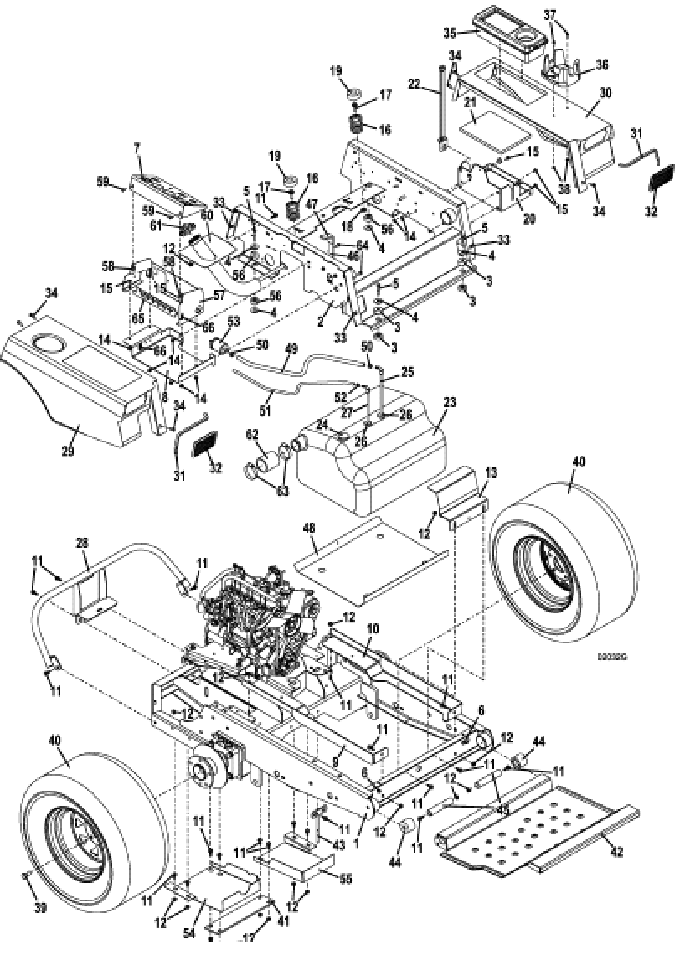

321D • Tractor Assembly

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

300M1 Front Port Lower Frame -

644282

2

300/400 Upper Frame

644434

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt .312-18 x 1.750

243220

6

Nylon Insert Nut .312-18

253450

7

Console w/Decal

693120

8

Console Mount

645052

9

Tank Rail - Right 300/400

645802

10

Tank Rail - Left 300/400

645803

11

Hex Flange Whiz Bolt .312-18 x .75

253192

12

Whiz Nut

253035

13

300/400 Front Tank Bracket

723042

14

Whiz Nut .250-20

253025

15

Truss Whiz Bolt .250-.20 x .500

253176

16

Compression Spring

283516

17

Whiz Flange Bolt .375-16 x 1

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1 Diesel .312 Tank Assembly

605800

24

Intank Fuel Gauge

141142

-

Grommet - Fuel Gauge Mount

424275

25

Fuel Tube

363929

26

Fuel Tube Bushing

101875

27

Fuel Tube

363923

28

Bumper

645572

29

300 Rt Fender w/Decals

693224

30

300 Lt Fender w/Decals

693225

31

Fender Edge Trim

822632

32

Plug for Worklamp Hole

422079

33

Speed Nut

254431

34

Hex Whiz Bolt

253175

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt .500 x .875

248565

40

Wheel & Tire Turf

483950

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 23 x 9.5 x 12

482488

-

Wheel

483435

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Tire Turf

483955

-

Wheel & Tire Turf

483960

41

Belt Guard Strap

783277

42

M1 Footrest on Frame

644256

43

M1 Deck Belt - Belt Guide

645005

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle Assembly - 321D

603858

-

Throttle Control Cable

323656

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

47

Handle Grip

422150

48

M1 Fuel Tank Shield

722949

49

Fuel Line Hose 428D

821718

50

Spring Hose Clamp

280261

51

430D Fuel Return Hose

821744

52

Spring Hose Clamp

280257

53

Prefilter Kubota Fuel Filter

101005

54

300 Hydro Debris Shield - right

723050

55

300 Hydro Debris Shield - right

723051

56

Step Bushing

257038

57

Console Frame

751036

58

Plastic Retainer Nut

254432

59

Bolt

253180

60

300/400 Fuel Filler

644887

61

Screw-On Diesel Fuel Cap

100211

62

Fuel Tank Filler Hose

422027

63

Screw Type Hose Clamp

280305

64

Hex Whiz Bolt

253173

65

Relay Mount

773103

66

Grommet

424216

67

321D Decal Set

605351
