Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

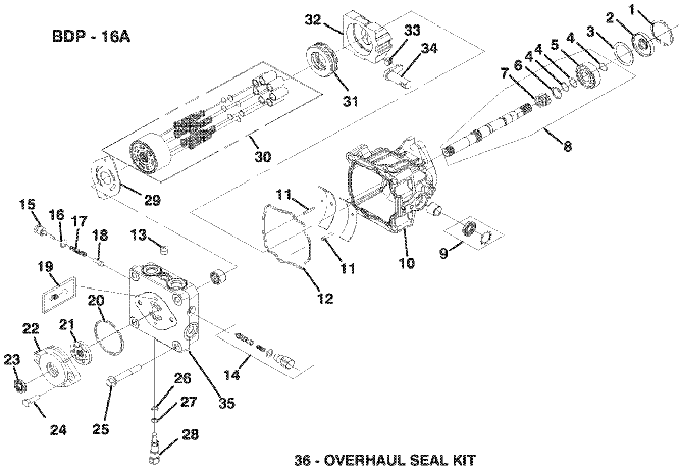

321D • Pump Assembly

2017

Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 321D Index Return to Top

Item #

Description

Part Number

1

Seal Retaining Ring

130088

2

Input Seal

125363

3

Spacer

130086

4

Wire Retaining Ring

130170

5

Input Bearing

130080

6

Block Thrust Washer

130220

7

Block Spring

130015

8

Sub Shaft Assembly

130178

9

Trunnion Seal Kit

125357

10

16A Housing Kit

130054

11

Dowel Pin

130046

12

Molded Seal Ring

130184

13

O-Ring Boss Plug

103739

14

Shock Valve Kit

130160

15

Check Plug

130030

16

O-Ring Check Plug

130031

17

Poppet Spring

130157

18

Poppet

130155

19

Ball & Spring Assembly

130027

20

Seal Ring

130020

21

Gerotor Set

130060

22

Charge Pump Cover

130022

23

Seal

125165

24

M8 Socket Head Screw

270078

25

Flanged Hex Head Screw

271080

26

Bypass Valve O-Ring

130018

27

Bypass Valve Backup Ring

130017

28

NOT AVAILABLE

000000

29

Valve Plate

130214

30

Block Kit

130152

31

Thrust Bearing

130008

32

NOT AVAILABLE

000000

33

Guide Block

130065

34

Control Shaft

130035

35

End Cap Kit

130044

-

End Cap Kit w/out Plate

130048

36

Seal Kit

130186
