322D • Wheel Motor & Brake Assembly

2009

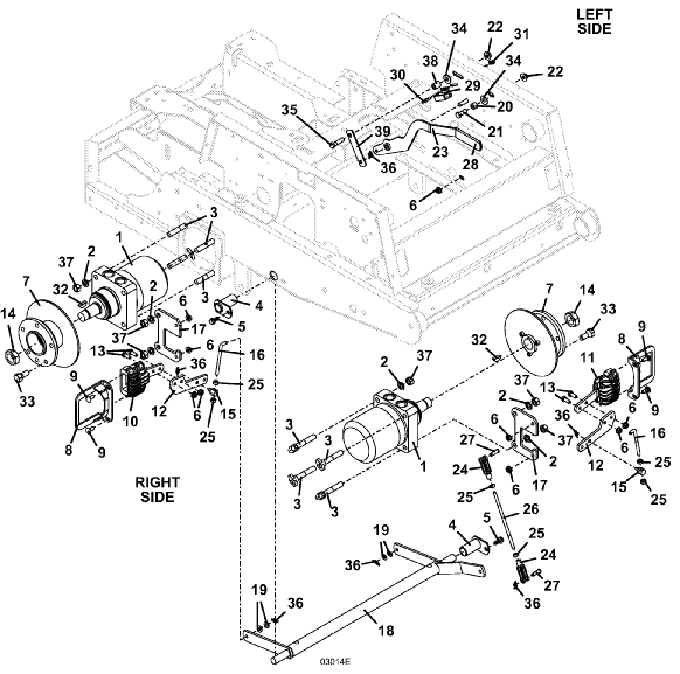

Wheel Motor and Brake Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603602

2

Lock Washer

257432

3

Diamond Head Bolt

243597

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

-

Socket Head Screw

259592

-

8.0 Rotor Brake

775192

8

M1/G2 Caliper Mount

644121

9

Hex Bolt

243385

-

Carriage Bolt

247130

-

Whiz Nut

253035

10

M1 700/900 CCW Brake Assembly

481141

-

CCW Caliper Brake Assembly

481103

-

Brake Pad Kit

481160

-

Brake Pad Kit

603150

-

M1/G2 Caliper Mount

644121

11

M1 700/900 CW Brake Assembly

481140

-

Clockwise Caliper Brake Assembly

481102

-

Brake Pad Kit

481160

-

Brake Pad Kit

603150

-

M1/G2 Caliper Mount

644121

12

Brake Caliper Arm

776056

13

Hex Bolt

243195

14

Nut

254522

15

Brake Linkage Pin

880926

16

M1 Brake Linkage Rod

730158

17

Brake Mount

776123

-

7.75 Brake Rotor Mount

776174

18

300 W/A Brake Tube

644173

19

Washer

257032

20

Spacer

902280

21

Hex Bolt

243330

22

Whiz Nut

253043

23

Brake Lever

644447

24

Clevis Yoke

265537

25

Nut

254441

26

Linkage Rod

780157

27

Clevis Pin

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut

253020

32

Woodruff Key

281860

33

Lug Bolt

248565

34

Washer

257040

35

Hex Bolt

243340

36

Cotter Ring

260606

37

Nut

254470

38

Spacer

902283

39

M1 Reinforcement Pin

774145
