Genuine OEM Grasshopper® Mower Parts Diagrams

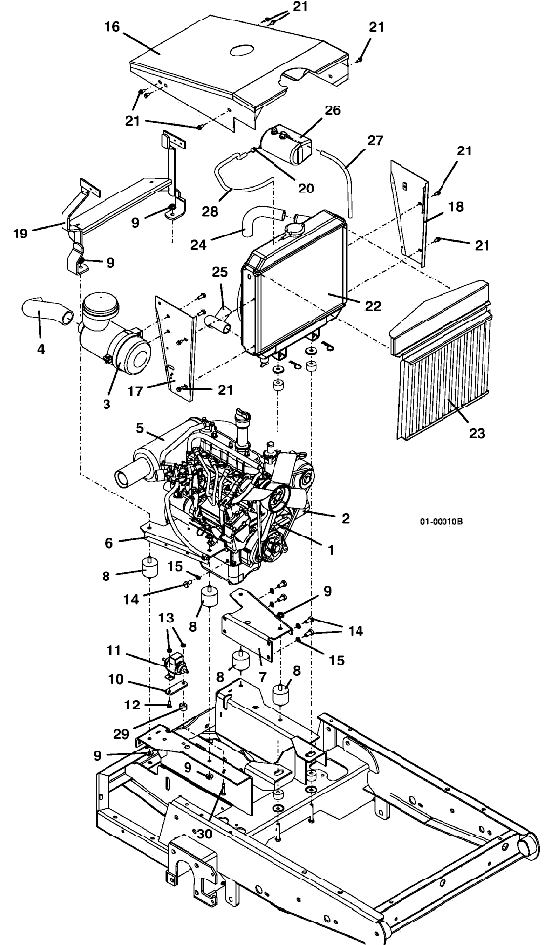

325 • Engine Assembly
2000 & 2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Kubota Gas Engine |
100171 |
2 |
Kubota Oil Filter |
100800 |
3 |
Kubota Air Filter |
100940 |
4 |
Intake Air Hose |
424519 |
5 |
Muffler & Gasket Assembly |
603590 |
- |
Kubota Flange Exhaust Gasket |
101040 |
6 |
right Wide Engine Mount |
643322 |
7 |
left Wide Engine Mount |
643323 |
8 |
Vibration Isolator |
424078 |
9 |
Whiz Nut .375-16 |
253043 |
10 |
Fuel Pump Mounting Plate |
782529 |
11 |
Electric Fuel Pump |
101510 |
12 |
Hex Whiz Bolt .25-20 x .75 |
253175 |
13 |
Whiz Nut .250-20 |
253025 |
14 |
Hex Bolt |
271120 |
15 |
Lock Washer |
275580 |
16 |
700 Hood with Decals |
693300 |
17 |
right Grille Support |
643799 |
18 |
left Grille Support |
643800 |
19 |
300S Rear Hood Support |
644762 |
20 |
Spring Hose Clamp |
280260 |
21 |
Hex Whiz Bolt .25-20 x .500 |
253173 |
22 |
Kubota Radiator |
101610 |
23 |
Radiator with Guard |
644663 |
24 |
Upper Radiator Hose |
101054 |
25 |
Lower Radiator Hose |
101055 |
26 |
Expansion Tank |
422012 |
27 |
Clear Vent Hose |
821748 |
28 |
Hose |
821749 |
29 |
Kubota Spacer - G2 Drive |
902328 |
30 |
Hex Bolt .250-20 x 1.500 |
243035 |
