Genuine OEM Grasshopper® Mower Parts Diagrams

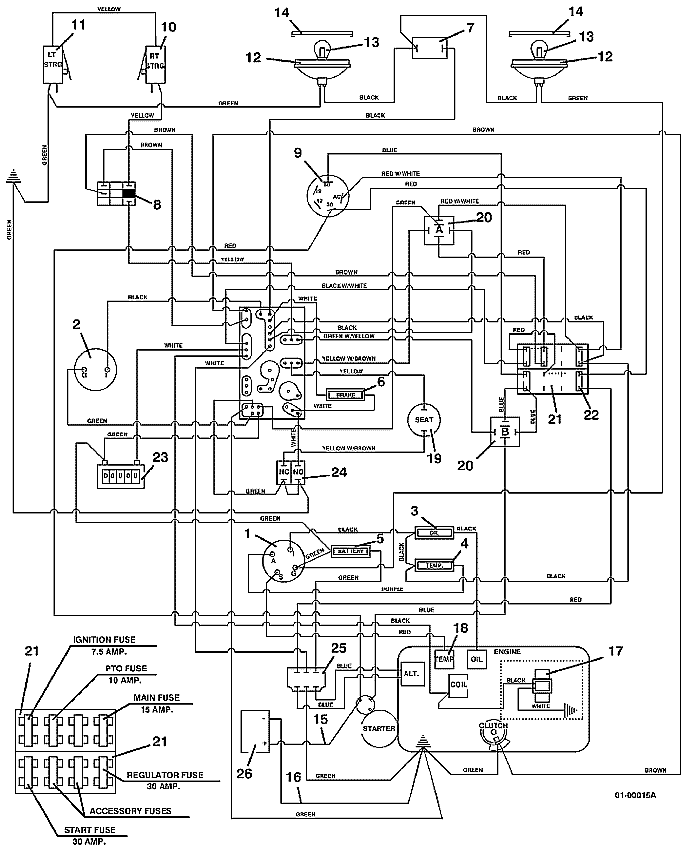

325 • Electrical Wiring
2000 & 2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Electric Zoned Temperature Gauge |
141160 |
2 |
Voltmeter Gauge |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Light Switch |
184179 |
8 |
Push / Pull Switch |
183925 |
9 |
Kubota Sealed Key Switch |
183827 |
- |
Kubota Double Notch Key Ignition |
101106 |
10 |
Lever Switch - right |
183860 |
- |
Right Steering Switch Mount |
720160 |
11 |
Lever Switch - left |
183860 |
- |
Left Steering Switch Mount |
720161 |
12 |
Worklamp (Flood) |
182253 |
13 |
Light Bulb for Headlight |
182005 |
14 |
Snap-Mount Bezel for Worklamp |
182251 |
15 |
Red 42" Battery Cable - 6 gauge |
180340 |
16 |
Black 39" Battery Cable - 6 gauge |
180295 |
17 |
Electric Fuel Pump |
101510 |
18 |
Temperature Sender |
141222 |
19 |
Seat Safety Switch |
183870 |
20 |
Relay - 12 volt DC |
184272 |
21 |
Fuse Block |
181722 |
- |
1 Wire Clip |
184458 |
- |
2 Wire Clip |
184460 |
- |
Double Wire Clip |
184472 |
22 |
Auto ATC 30 Amp Fuse |
181470 |
- |
Auto ATC 15 Amp Fuse |
181465 |
- |
Auto ATC 10 Amp Fuse |
181462 |
- |
Auto ATC 7.5 Amp Fuse |
181460 |
23 |
Snap-in Hour Meter |
141551 |
24 |
Brake Interlock Switch |
183894 |
25 |
Voltage Regulator - 12 volt |
185530 |
26 |
12 volt Side Post Wet Battery |
180130 |
- |
Battery Box Assembly with Strap |
603104 |
- |
Battery Hold Down Strap |
603110 |
27 |
Wiring Assembly - 325 |
605925 |
28 |
Decal - Console |
161142 |
