Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

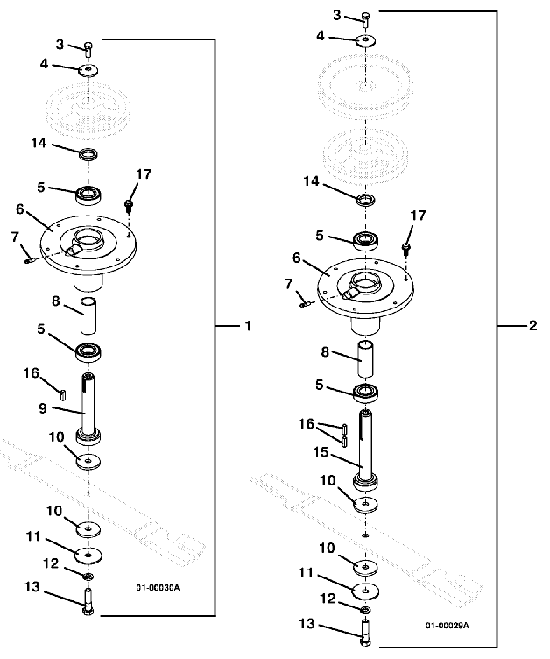

325 • Blade Spindle Assembly - M172

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly, left & right (includes items 3-15)

623786

2

Spindle Assembly, center (includes items 3-9 and 11-16)

623787

3

Hex Bolt .375-24 x 1

243331

4

Cupped Washer

257041

5

Single Seal Ball Bearing

110082

6

Machined Deep Spindle Housing

824150

7

Zerk Grease Fitting

280745

8

Deep Spindle Bearing Spacer

903643

9

98S Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Hex Bolt

243581

14

Spacer

282615

15

M1 Spindle Shaft Assembly

604773

16

Square Key

281582

17

Hex Flange Whiz Bolt

253192
